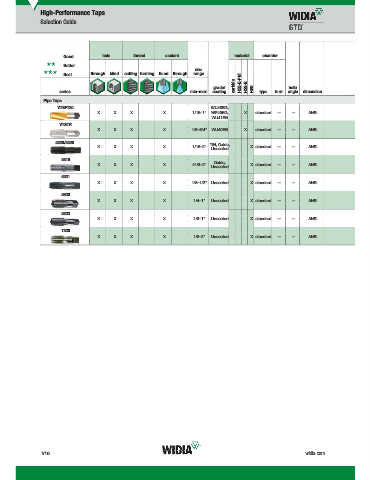

Page 1692 - Master Catalog 2017, Inch

High-Performance Taps
Selection Guide

Good hole thread coolant material chamfer
 Better
size
 Best through blind cutting forming flood through range
carbide HSS-E-PM
grade/ HSS-E helix
series min–max coating HSS type form angle dimension
Pipe Taps
VTSFT80 WU40EG,
X X X X 1/16–1" WP49EG, X standard — — ANSI
WU41EG
VTSTR
X X X X 1/8–3/4" WU40EG X standard — — ANSI

2320/5320 TiN, Oxide,
X X X X 1/16–2" X standard — — ANSI
Uncoated
5319 Oxide,
X X X X #1/8–2" X standard — — ANSI
Uncoated
5321
X X X X 1/8–1/2" Uncoated X standard — — ANSI

5820
X X X X 1/4–1" Uncoated X standard — — ANSI

5323
X X X X 1/8–1" Uncoated X standard — — ANSI

7320
X X X X 1/8–2" Uncoated X standard — — ANSI
