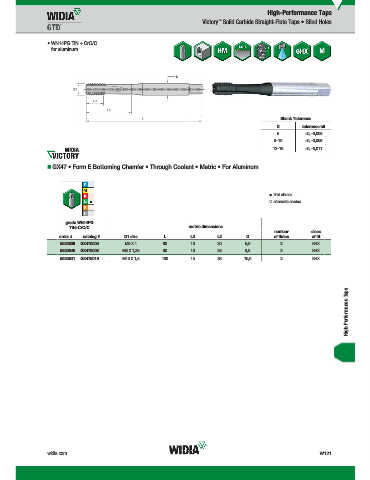

Page 1819 - Master Catalog 2017, Inch

High-Performance Taps
Victory Solid Carbide Straight-Flute Taps • Blind Holes
™

• WN14PG TiN + CrC/C
for aluminum.

Shank Tolerance
D tolerance h6
6 +0, -0,008
8–10 +0, -0,009
12–16 +0, -0,011

„ GX47 • Form E Bottoming Chamfer • Through Coolant • Metric • For Aluminum

first choice
alternate choice

WN14PG
grade WN14PG
TiN+CrC/C metric dimensions
number class
order # catalog # D1 size L L3 L2 D of flutes of fit
5520839 GX475006 M6 X 1 80 10 30 6,0 3 6HX
5520840 GX475008 M8 X 1,25 90 10 35 8,0 3 6HX
5520841 GX475010 M10 X 1,5 100 15 39 10,0 3 6HX

High-Performance Taps

widia.com W121
