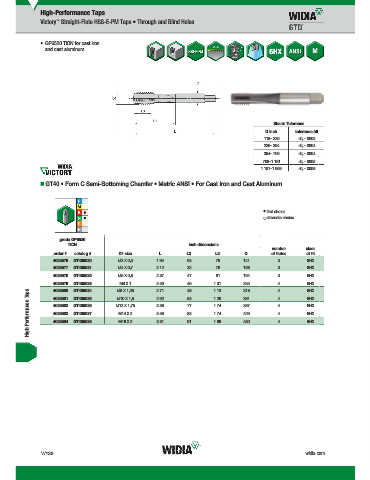

Page 1824 - Master Catalog 2017, Inch

High-Performance Taps
Victory Straight-Flute HSS-E-PM Taps • Through and Blind Holes
™

• GP6520 TiCN for cast iron
and cast aluminum.

Shank Tolerance
D inch tolerance h6
.118–.236 +0, -.0003
.236–.394 +0, -.0004
.394–.709 +0, -.0004
.709–1.181 +0, -.0005
1.181–1.969 +0, -.0006

„ GT40 • Form C Semi-Bottoming Chamfer • Metric ANSI • For Cast Iron and Cast Aluminum

first choice
alternate choice

GP6520
grade GP6520
TiCN inch dimensions
number class
order # catalog # D1 size L L3 L2 D of flutes of fit
4035576 GT405030 M3 X 0,5 1.94 .63 .75 .141 3 6HX
4035577 GT405031 M4 X 0,7 2.12 .32 .76 .168 3 6HX
4035578 GT405032 M5 X 0,8 2.37 .47 .91 .194 3 6HX
M6 X 1
4035579 GT405033 M8 X 1,25 2.50 .46 1.01 .255 4 4 6HX
.48
2.71
.318
1.13
4035580 GT405034
6HX
High-Performance Taps 4035581 GT405035 M12 X 1,75 2.92 .53 1.26 .381 4 4 4 4 6HX
M10 X 1,5
1.74
3.38
.367
4035582 GT405036
6HX
.77
3.59
4035583 GT405037
.429
M14 X 2
6HX
.83
1.74
4035584 GT405038
6HX
.91
3.81
M16 X 2
.480
1.89
