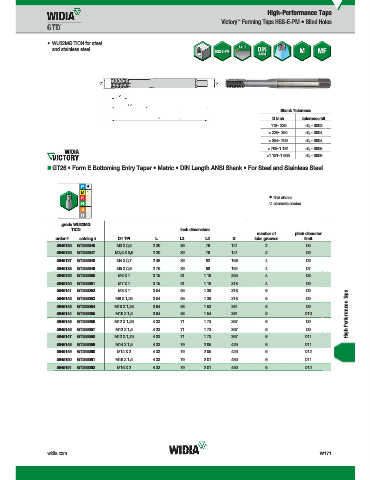

Page 1869 - Master Catalog 2017, Inch

High-Performance Taps
™
Victory Forming Taps HSS-E-PM • Blind Holes

• WU32MG TiCN for steel
and stainless steel.

Shank Tolerance
D inch tolerance h6
.118–.236 +0, -.0003
>.236–.394 +0, -.0004
>.394–.709 +0, -.0004
>.709–1.181 +0, -.0005
>1.181–1.969 +0, -.0006

„ GT26 • Form E Bottoming Entry Taper • Metric • DIN Length ANSI Shank • For Steel and Stainless Steel

first choice
alternate choice

grade WU32MG
WU32MG
TiCN inch dimensions
number of pitch diameter
order # catalog # D1 TPI L L3 L2 D lube grooves limit
5945135 GT265046 M3 X 0,5 2.20 .39 .79 .141 2 D5
5945136 GT265047 M3,5 X 0,6 2.20 .39 .79 .141 2 D6
5945137 GT265048 M4 X 0,7 2.48 .39 .83 .168 4 D6
5945138 GT265049 M5 X 0,8 2.76 .39 .98 .194 4 D7
5945139 GT265050 M6 X 1 3.15 .51 1.18 .255 4 D8
5945140 GT265051 M7 X 1 3.15 .51 1.18 .318 4 D9
5945141 GT265052 M8 X 1 3.54 .55 1.38 .318 6 D9
5945142 GT265053 M8 X 1,25 3.54 .55 1.38 .318 6 D9
5945143 GT265054 M10 X 1,25 3.94 .63 1.53 .381 6 D9
5945144 GT265055 M10 X 1,5 3.94 .63 1.54 .381 6 D10 High-Performance Taps
5945145 GT265056 M12 X 1,25 4.33 .71 1.73 .367 6 D9
5945146 GT265057 M12 X 1,5 4.33 .71 1.73 .367 6 D9
5945147 GT265058 M12 X 1,75 4.33 .71 1.73 .367 6 D11
5945148 GT265059 M14 X 1,5 4.33 .79 2.05 .429 6 D11
5945149 GT265060 M14 X 2 4.33 .79 2.05 .429 6 D12
5945150 GT265061 M16 X 1,5 4.33 .79 2.01 .480 6 D11
5945151 GT265062 M16 X 2 4.33 .79 2.01 .480 6 D12

widia.com W171
