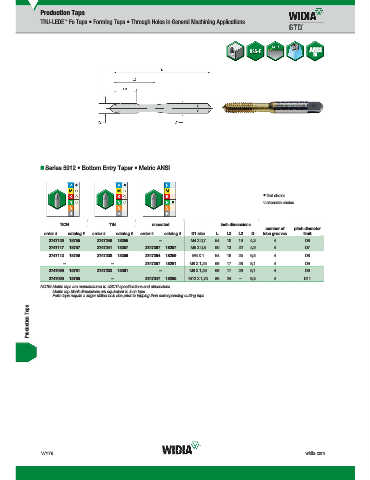

Page 1874 - Master Catalog 2017, Inch
P. 1874
Production Taps
TRU-LEDE Fe Taps • Forming Taps • Through Holes in General Machining Applications
™
ANSI
M
Series 5912 • Bottom Entry Taper • Metric ANSI
first choice
alternate choice
TiCN TiN uncoated inch dimensions
TiCN
uncoated
TiN
number of pitch diameter
order # catalog # order # catalog # order # catalog # D1 size L L3 L2 D lube grooves limit
2747120 18755 2747246 18355 — M4 X 0,7 54 10 19 4,3 4 D6
2747117 18757 2747241 18357 2747367 18257 M5 X 0,8 60 13 22 4,9 4 D7
2747113 18759 2747238 18359 2747364 18259 M6 X 1 64 16 25 6,5 4 D8
— — 2747357 18261 M8 X 1,25 69 17 28 8,1 4 D9
2747099 18761 2747233 18361 — M8 X 1,25 69 17 29 8,1 4 D9
2747090 18765 — 2747347 18265 M12 X 1,75 86 24 — 9,3 4 D11
NOTE: Metric taps are manufactured to USCTI specifications and dimensions.
Metric tap blank dimensions are equivalent to inch taps.
Form taps require a larger drilled hole size prior to tapping than corresponding cutting taps.
