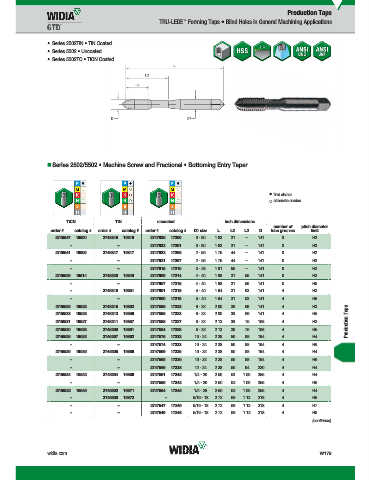

Page 1877 - Master Catalog 2017, Inch
P. 1877
Production Taps
TRU-LEDE Forming Taps • Blind Holes in General Machining Applications
™
• Series 2502TiN • TiN Coated
• Series 5502 • Uncoated
• Series 5502TC • TiCN Coated
Series 2502/5502 • Machine Screw and Fractional • Bottoming Entry Taper
first choice
alternate choice
uncoated
TiCN TiN uncoated inch dimensions
TiN
TiCN
number of pitch diameter
order # catalog # order # catalog # order # catalog # D1 size L L3 L2 D lube grooves limit
2746547 19500 2746349 19816 2747635 17200 0 - 80 1.63 .31 — .141 0 H2
– – 2747633 17201 0 - 80 1.63 .31 — .141 0 H3
2746541 19506 2746347 19817 2747623 17206 2 - 56 1.75 .44 — .141 0 H2
– – 2747621 17207 2 - 56 1.75 .44 — .141 0 H3
– – 2747615 17210 3 - 48 1.81 .50 — .141 0 H2
2746539 19514 2746320 19849 2747609 17214 4 - 40 1.88 .31 .56 .141 0 H3
– – 2747607 17215 4 - 40 1.88 .31 .56 .141 0 H5
– 2746318 19851 2747601 17218 5 - 40 1.94 .31 .63 .141 4 H3
– – 2747600 17219 5 - 40 1.94 .31 .63 .141 4 H5
2746535 19522 2746315 19852 2747598 17222 6 - 32 2.00 .38 .69 .141 4 H3
2746533 19523 2746313 19856 2747595 17223 6 - 32 2.00 .38 .69 .141 4 H5
2746531 19527 2746311 19857 2747588 17227 8 - 32 2.13 .38 .75 .168 4 H3 Production Taps
2746530 19528 2746309 19861 2747584 17228 8 - 32 2.13 .38 .75 .168 4 H5
2746528 19532 2746307 19862 2747576 17232 10 - 24 2.38 .50 .88 .194 4 H4
– – 2747574 17233 10 - 24 2.38 .50 .88 .194 4 H6
2746526 19535 2746305 19866 2747569 17235 10 - 32 2.38 .50 .88 .194 4 H4
– – 2747568 17236 10 - 32 2.38 .50 .88 .194 4 H6
– – 2747566 17238 12 - 24 2.38 .50 .94 .220 4 H4
2746524 19542 2746304 19869 2747561 17242 1/4 - 20 2.50 .63 1.00 .255 4 H4
– – 2747559 17243 1/4 - 20 2.50 .63 1.00 .255 4 H6
2746522 19545 2746302 19871 2747554 17245 1/4 - 28 2.50 .63 1.00 .255 4 H4
– 2746300 19872 – 5/16 - 18 2.72 .69 1.13 .318 4 H5
– – 2747547 17249 5/16 - 18 2.72 .69 1.13 .318 4 H7
– – 2747549 17248 5/16 - 18 2.72 .69 1.13 .318 4 H5
(continued)
