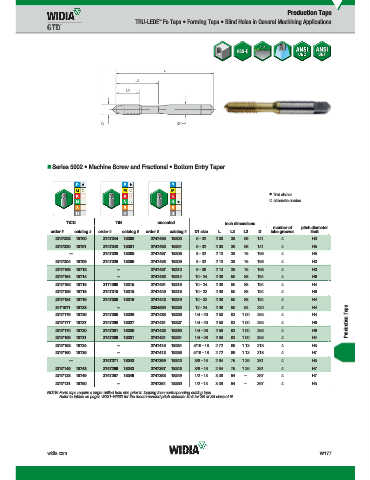

Page 1875 - Master Catalog 2017, Inch

Production Taps
™
TRU-LEDE Fe Taps • Forming Taps • Blind Holes in General Machining Applications

„ Series 5902 • Machine Screw and Fractional • Bottom Entry Taper

first choice
alternate choice

TiCN TiN uncoated inch dimensions
TiN
uncoated
TiCN
number of pitch diameter
order # catalog # order # catalog # order # catalog # D1 size L L3 L2 D lube grooves limit
2747222 18700 2747344 18300 2747485 18200 6 - 32 2.00 .38 .69 .141 4 H3
2747220 18701 2747342 18301 2747483 18201 6 - 32 2.00 .38 .69 .141 4 H5
— 2747328 18308 2747467 18208 8 - 32 2.13 .38 .75 .168 4 H5
2747204 18709 2747326 18309 2747463 18209 8 - 32 2.13 .38 .75 .168 4 H3
2747198 18712 — 2747457 18212 8 - 36 2.13 .38 .75 .168 4 H3
2747194 18714 — 2747453 18214 10 - 24 2.38 .50 .88 .194 4 H6
2747192 18715 3171068 18315 2747451 18215 10 - 24 2.38 .50 .88 .194 4 H4
2747186 18718 2747310 18318 2747445 18218 10 - 32 2.38 .50 .88 .194 4 H6
2747184 18719 2747308 18319 2747443 18219 10 - 32 2.38 .50 .88 .194 4 H4
Production Taps
3171071 18723 — 3324580 18223 12 - 24 2.38 .50 .94 .220 4 H4
2747179 18726 2747300 18326 2747433 18226 1/4 - 20 2.50 .63 1.00 .255 4 H4
2747177 18727 2747298 18327 2747431 18227 1/4 - 20 2.50 .63 1.00 .255 4 H6
2747170 18730 2747291 18330 2747423 18230 1/4 - 28 2.50 .63 1.00 .255 4 H6
2747169 18731 2747289 18331 2747421 18231 1/4 - 28 2.50 .63 1.00 .255 4 H4
2747162 18734 — 2747415 18234 5/16 - 18 2.72 .69 1.13 .318 4 H5
2747160 18735 — 2747413 18235 5/16 - 18 2.72 .69 1.13 .318 4 H7
— 2747271 18342 2747399 18242 3/8 - 16 2.94 .75 1.25 .381 4 H5
2747145 18743 2747269 18343 2747397 18243 3/8 - 16 2.94 .75 1.25 .381 4 H7
2747133 18749 2747257 18349 2747383 18249 1/2 - 13 3.38 .94 — .367 4 H7
2747131 18750 — 2747381 18250 1/2 - 13 3.38 .94 — .367 4 H5
NOTE: Form taps require a larger drilled hole size prior to tapping than corresponding cutting taps.
Refer to tables on pages W231–W232 for the recommended pitch diameter limit for 2B or 3B class of fit.
