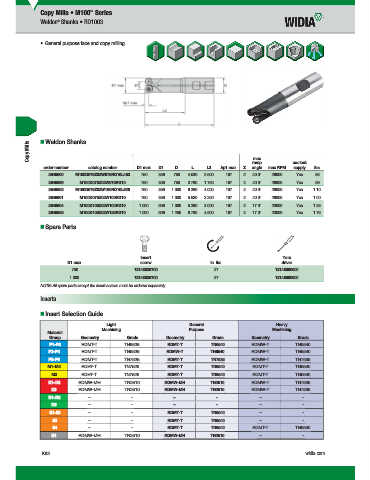

Page 990 - Master Catalog 2017, Inch

Copy Mills • M100 Series
™
®
Weldon Shanks • RD1003..

• General purpose face and copy milling.

Copy Mills „ Weldon Shanks

max
ramp coolant
order number catalog number D1 max D1 D L L2 Ap1 max Z angle max RPM supply lbs
2646600 M100D075Z02W075RD10L453 .750 .356 .750 4.530 2.500 .197 2 40.0° 26000 Yes .85
2646599 M100D075Z02W075RD10 .750 .356 .750 3.780 1.750 .197 2 40.0° 26000 Yes .66
2646602 M100D075Z02W100RD10L628 .750 .356 1.000 6.280 4.000 .197 2 40.0° 26000 Yes 1.10
2646601 M100D075Z02W100RD10 .750 .356 1.000 5.530 3.250 .197 2 40.0° 26000 Yes 1.00
2646604 M100D100Z02W100RD10 1.000 .606 1.000 5.280 3.000 .197 2 17.0° 23000 Yes 1.25
2646605 M100D100Z02W125RD10 1.000 .606 1.250 6.780 4.500 .197 2 17.0° 23000 Yes 1.75

„ Spare Parts

insert Torx
D1 max screw in. lbs. driver
.750 12148036700 27 12148000600
1.000 12148036700 27 12148000600
NOTE: All spare parts except the insert screws must be ordered separately.

Inserts

„ Insert Selection Guide
Light General Heavy
Machining Purpose Machining
Material
Group Geometry Grade Geometry Grade Geometry Grade
P1–P2 RDMT-T TN6525 RDMT-T TN6540 RDMW-T TN6540
P3–P4 RDMT-T TN6525 RDMW-T TN6540 RDMW-T TN6540
P5–P6 RDMT-T TN7525 RDMT-T TN7535 RDMW-T TN7535
M1–M2 RDHT-T TN7525 RDMT-T TN6540 RDMT-T TN6540
M3 RDHT-T TN7525 RDMT-T TN6540 RDMT-T TN6540
K1–K2 RDMW-MH TN2510 RDMW-MH TN2510 RDMW-T TN7535
K3 RDMW-MH TN2510 RDMW-MH TN2510 RDMW-T TN7535
N1–N2 – – – – – –
N3 – – – – – –
S1–S2 – – RDMT-T TN6540 – –
S3 – – RDMT-T TN6540 – –
S4 – – RDMT-T TN6540 RDMT-T TN6540
H1 RDMW-MH TN2510 RDMW-MH TN2510 – –

K82 widia.com
