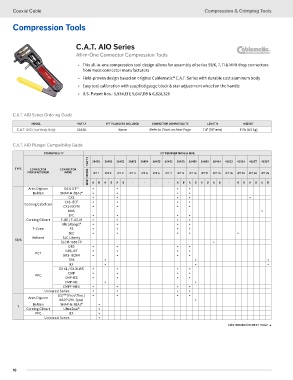

Page 18 - Broadband Catalog 2018

Coaxial Cable Compression & Crimping Tools

Compression Tools

C.A.T. AIO Series

All-in-One Connector Compression Tools
• This all-in-one compression tool design allows for assembly of series 59/6, 7, 11 & MINI drop connectors
from most connector manufacturers
• Field-proven design based on original Cablematic® C.A.T. Series with durable cast aluminum body
• Easy tool calibration with supplied gauge block & star adjustment wheel on the handle
• U.S. Patent Nos.: 5,934,137; 5,647,119 & 6,820,326

C.A.T. AIO Series Ordering Guide

MODEL PART # IPT PLUNGERS INCLUDED CONNECTOR COMPATIBILITY LENGTH WEIGHT
C.A.T. AIO (Tool Body Only) 38480 None Refer to Chart on Next Page 7.4″ (187 mm) 1.1 lb (0.5 kg)

C.A.T. AIO Plunger Compatibility Guide
COMPATIBILITY IPT PLUNGER MODE & SIDE
PART # 38450 38451 38452 38453 38454 38455 38456 38458 38459 38460 38464 42022 42024 42057 42597

TYPE CONNECTOR CONNECTOR
MANUFACTURER NAME MODEL IPT 1 IPT 2 IPT 3 IPT 4 IPT 5 IPT 6 IPT 7 IPT 9 IPT 10 IPT 11 IPT 15 IPT 16 IPT 18 IPT 20 IPT 25
SIDE A B A B A B - - - - A B A B A B A B - A B A B A B
Arris Digicon DS & DT™ ∙ ∙ ∙ ∙
Belden SNAP-N-SEAL® ∙ ∙ ∙ ∙
CX3 ∙ ∙ ∙ ∙ ∙
CX3-IECF ∙ ∙ ∙ ∙
Corning Cabelcon
CX3-IECFM ∙ ∙ ∙ ∙
M45 ∙
EFC ∙ ∙ ∙ ∙
Corning Gilbert F-UE / F-UE-M ∙ ∙ ∙ ∙
UltraRange® ∙ ∙ ∙ ∙
F-Conn FS ∙ ∙ ∙ ∙
SLC ∙ ∙ ∙ ∙ ∙
Holland SLC Liberty
59/6
SLCM-1855 FP ∙
DRS ∙ ∙ ∙ ∙
DRS-IEF ∙ ∙ ∙ ∙
PCT
DRS-IECFM ∙ ∙ ∙ ∙
TRS ∙ ∙ ∙
EX ∙ ∙ ∙
EX XL / EX-XLWS ∙ ∙ ∙ ∙
CMP ∙ ∙ ∙ ∙
PPC
CMP-IEC ∙ ∙ ∙ ∙
CMP-MC ∙ ∙
CMPF-MINI ∙ ∙ ∙ ∙
Universal Series ∙ ∙ ∙ ∙
DS7™ (Feed Thru.) ∙ ∙ ∙ ∙
Arris Digicon
DS7P (Pin-Type) ∙
Belden SNAP-N-SEAL® ∙
7
Corning Gilbert UltraSeal® ∙
PPC EX ∙
Universal Series ∙
CONTINUED ON NEXT PAGE →
