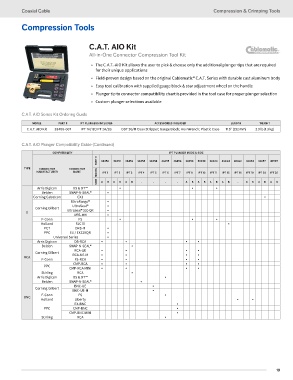

Page 19 - Broadband Catalog 2018

Coaxial Cable Compression & Crimping Tools

Compression Tools

C.A.T. AIO Kit

All-in-One Connector Compression Tool Kit
• The C.A.T.-AIO Kit allows the user to pick & choose only the additional plunger tips that are required
for their unique applications
• Field-proven design based on the original Cablematic® C.A.T. Series with durable cast aluminum body
• Easy tool calibration with supplied gauge block & star adjustment wheel on the handle
• Plunger tip to connector compatibility chart is provided in the tool case for proper plunger selection
• Custom plunger selections available

C.A.T. AIO Series Kit Ordering Guide

MODEL PART # IPT PLUNGERS INCLUDED ACCESSORIES INCLUDED LENGTH WEIGHT
C.A.T. AIO Kit 38480-007 IPT 1A/1B; IPT 2A/2B DDT 96/11 Coax Stripper; Gauge Block; Hex Wrench; Plastic Case 11.5″ (292 mm) 2.9 lb (1.3 kg)

C.A.T. AIO Plunger Compatibility Guide (Continued)
COMPATIBILITY IPT PLUNGER MODE & SIDE
PART # 38450 38451 38452 38453 38454 38455 38456 38458 38459 38460 38464 42022 42024 42057 42597
TYPE CONNECTOR CONNECTOR
MANUFACTURER NAME MODEL IPT 1 IPT 2 IPT 3 IPT 4 IPT 5 IPT 6 IPT 7 IPT 9 IPT 10 IPT 11 IPT 15 IPT 16 IPT 18 IPT 20 IPT 25

SIDE A B A B A B - - - - A B A B A B A B - A B A B A B
Arris Digicon DS & DT™ ∙ ∙ ∙
Belden SNAP-N-SEAL® ∙
Corning Cabelcon CX3 ∙
UltraRange® ∙
UltraSeal® ∙
Corning Gilbert
11 UltraSeal® 320 QR ∙
URS-MH ∙
F-Conn FS ∙ ∙ ∙
Holland SLC 11 ∙
PCT DRS-11 ∙
PPC EX / EX320QR ∙
Universal Series ∙
Arris Digicon DS-RCA ∙ ∙ ∙ ∙
Belden SNAP-N-SEAL® ∙
RCA-UE ∙ ∙ ∙ ∙
Corning Gilbert
RCA RCA-UE-M ∙ ∙ ∙ ∙
F-Conn FS-RCA ∙ ∙ ∙ ∙
CMP-RCA ∙ ∙ ∙ ∙
PPC
CMP-RCA MINI ∙ ∙ ∙ ∙
Stirling RCA ∙
Arris Digicon DS & DT™ ∙
Belden SNAP-N-SEAL® ∙
BNC-UE ∙
Corning Gilbert
BNC-UE-M ∙
F-Conn FS ∙
BNC
Holland Liberty ∙ ∙
EX-BNC ∙
PPC CMP-BNC ∙
CMP-BNC MINI ∙
Stirling RCA ∙

18 19
