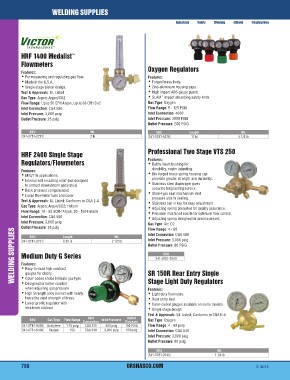

Page 788 - APEX MRO Products

WELDING SUPPLIES

Industrial Safety Welding Oilfield Construction

HRF 1400 Medalist™ Oxygen Regulators

Flowmeters Features:

Features: • Forged brass body.
• Zinc-aluminum housing caps.
• For measuring and regulating gas flow. • High impact ABS gauge guard.
• Made in the U.S.A.. • SLAM™ impact absorbing safety knob.
• Single stage piston design.
Gas Type: Oxygen
Test & Approvals: UL Listed Flow Range: 5 - 125 PSIG
Gas Type: Argon; Argon/CO2 Inlet Connection: 4000
Flow Range: Up to 50 CFH Argon, Up to 38 CFH Co2 Inlet Pressure: 3000 PSIG
Inlet Connection: CGA 580 Outlet Pressure: 200 PSIG
Inlet Pressure: 3,000 psig
Outlet Pressure: 25 psig

SKU Wt. SKU Length Wt.
341-0781-2723 2 lb 341-0781-5218 11 in 5 1/2 lb

WELDING SUPPLIES HRF 2400 Single Stage Professional Two Stage VTS 250

Regulators/Flowmeters Features:

•FeaMtuIGre/TsI:G applications. • Delrin insert bushing for
• Internal self reseating relief (not designed
durability, easier adjusting.
to protect downstream apparatus).
• Die-forged brass spring housing cap
• Back pressure compensated.
• Lexan flowmeter tube and cover. provides greater strength and durability.

Test & Approvals: UL Listed; Conforms to CGA E-4 • Stainless steel diaphragm gives
Gas Type: Argon; Argon/CO2; Helium
Flow Range: 10 - 50 SCFH Argon; 20 - 150 Helium accurate long lasting service.
Inlet Connection: CGA 580
Inlet Pressure: 3,000 psig • Stem-type seat mechanism inlet
Outlet Pressure: 25 psig
pressure aids in sealing.
SKU Length Wt.
341-0781-2731 8.25 in 2 1/2 lb • Stainless ball in key for easy adjustment.
• Adjusting spring pretested for quality assurance.
Medium Duty G Series • Precision machined nozzle for optimum flow control.
• Adjusting spring designed for precise preset.
F•eaEtausrye-sto: -read high contrast
Gas Type: Air; O2
gauges for clarity. Flow Range: 4 - 80
Inlet Connection: CGA 580
• Color-coded knobs indicate gas type. Inlet Pressure: 3,000 psig
• Designed for better comfort Outlet Pressure: 80 PSIG

when adjusting gas pressure. SKU
341-0781-3509
• High Strength alloy bonnet with nearly
SR 150R Rear Entry Single
twice the yield strength of brass.
Stage Light Duty Regulators
• Lower profile regulator with
•FeaLtiugrhet sd:uty flow rates.
less knob stickout. • Rear entry inlet.
• Color-coded gauges available on some models.
SKU Gas Type Flow Range Inlet Inlet Pressure Outlet • Single stage design.
Connection Pressure
341-0781-9405 Acetylene 1-15 psig CGA 510 400 psig 150 PSIG Test & Approvals: UL Listed; Conforms to CGA E-4
341-0781-9400 Oxygen 150 psig Gas Type: Oxygen
150 CGA 540 3,000 psig Flow Range: 4 - 80 psig
Inlet Connection: CGA 540
Inlet Pressure: 3,000 psig
Outlet Pressure: 80 psig

SKU Wt.
341-0781-2545 1 1/4 lb

786 ORSNASCO.COM © 2016
