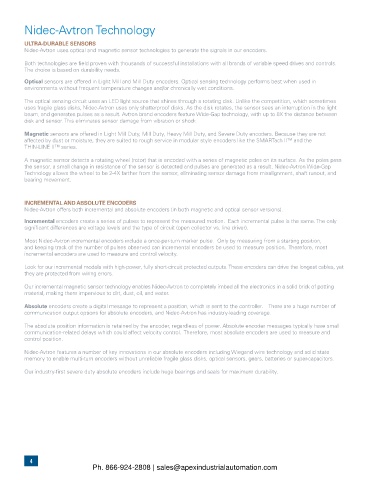

Nidec-Avtron Technology

ULTRA-DURABLE SENSORS
Nidec-Avtron uses optical and magnetic sensor technologies to generate the signals in our en coders.

Both technologies are field proven with thousands of successful installations with all brands of variable speed drives and controls.
The choice is based on durability needs.
Optical sensors are offered in Light Mill and Mill Duty encoders. Optical sensing technology performs best when used in
environments without frequent temperature changes and/or chronically wet conditions.
The optical sensing circuit uses an LED light source that shines through a rotating disk. Unlike the competition, which sometimes
uses fragile glass disks, Nidec-Avtron uses only shatterproof disks. As the disk rotates, the sensor sees an interruption in the light
beam, and generates pulses as a result. Avtron brand encoders feature Wide-Gap technology, with up to 8X the distance between
disk and sensor. This eliminates sensor damage from vibration or shock.

Magnetic sensors are offered in Light Mill Duty, Mill Duty, Heavy Mill Duty, and Severe Duty encoders. Be cause they are not
affected by dust or moisture, they are suited to rough service in modular style encoders like the SMARTach II™ and the
THIN-LINE II™ series.
A magnetic sensor detects a rotating wheel (rotor) that is encoded with a series of magnetic poles on its surface. As the poles pass
the sensor, a small change in resistance of the sensor is detected and pulses are generated as a result. Nidec-Avtron Wide-Gap
Technology allows the wheel to be 2-4X farther from the sensor, eliminating sensor damage from misalignment, shaft runout, and
bearing movement.

INCREMENTAL AND ABSOLUTE ENCODERS
Nidec-Avtron offers both incremental and absolute encoders (in both magnetic and optical sensor versions).

Incremental encoders create a series of pulses to represent the measured motion. Each incremental pulse is the same. The only
significant differences are voltage levels and the type of circuit (open collector vs. line driver).

Most Nidec-Avtron incremental encoders include a once-per-turn marker pulse. Only by measuring from a starting position,
and keeping track of the number of pulses observed can incremental encoders be used to measure position. Therefore, most
incremental encoders are used to measure and control velocity.
Look for our incremental models with high-power, fully short-circuit protected outputs. These encoders can drive the longest cables, yet
they are protected from wiring errors.
Our incremental magnetic sensor technology enables Nidec-Avtron to completely imbed all the electronics in a solid brick of potting
material, making them impervious to dirt, dust, oil, and water.
Absolute encoders create a digital message to represent a position, which is sent to the controller. There are a huge number of
communication output options for absolute encoders, and Nidec-Avtron has industry-leading coverage.
The absolute position information is retained by the encoder, regardless of power. Absolute encoder messages typically have small
communication-related delays which could affect velocity control. Therefore, most absolute encoders are used to measure and
control position.

Nidec-Avtron features a number of key innovations in our absolute encoders including Wiegand wire technology and solid state
memory to enable multi-turn encoders without unreliable fragile glass disks, optical sensors, gears, batteries or super-capacitors.

Our industry-first severe duty absolute encoders include huge bearings and seals for maximum durability.
