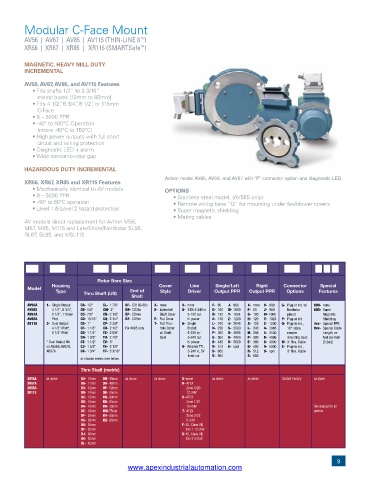

Page 9 - Avtron Encoders Catalog

Modular C-Face Mount
AV56 | AV67 | AV85 | AV115 (THIN-LINE II )
TM
XR56 | XR67 | XR85 | XR115 (SMARTSafe )
TM

MAGNETIC, HEAVY MILL DUTY
INCREMENTAL

AV56, AV67, AV85, and AV115 Features
• Fits shafts 1/2” to 3 3/16”
metric bores [10mm to 85mm]
• Fits 4 1/2”, 6 3/4”, 8 1/2”, or 115mm
C-Face
• 8 – 5000 PPR
• -40° to 100°C Operation
(rotors -40°C to 150°C)
• High power outputs with full short
circuit and wiring protection
• Diagnostic LED + alarm
• Wide sensor-to-rotor gap
HAZARDOUS DUTY INCREMENTAL
Avtron model AV85, AV56, and AV67 with “P” connector option and diagnostic LED.
XR56, XR67, XR85 and XR115 Features
• Mechanically identical to AV models OPTIONS
• 8 – 5000 PPR • Stainless steel model, (AV56S only)
• -40° to 80°C operation • Remote wiring base “Q” for mounting under fan/blower covers
• Level 1 & Level 2 hazard protection • Super magnetic shielding
• Mating cables
AV models direct replacement for Avtron M56,
M67, M85, M115 and LakeShore/Northstar SL56,
RL67, SL85, and MSL115

Rotor Bore Size
Housing Cover Line Single/Left Right Connector Special
Model
Type End of Style Driver Output PPR Output PPR Options Features
Thru Shaft (US)
Shaft
AV56A 1- Single Output: CA- 1/2" CL- 1 7/8" EF- CD180-32x X- none X- none F- 60 J- 960 X- none V- 900 G- Plug-in Ind. w/ 000- none
AV56S 4 1/2", 6 3/4", CB- 5/8" CM- 2" EN- CD36x E- Extended 8- STD: 5-24V in G- 100 W- 1000 F- 60 J- 960 Northstar 005- Super
AV67A 8 1/2", 115mm CC- 7/8" CN- 2 1/8" EP- CD4xx Shaft Cover 5-15V out H- 120 Y- 1024 G- 100 W- 1000 pinout Magnetic
AV85A Pilot CD- 15/16" CQ- 2 1/4" E2- CD5xx F- Flat Cover hi power A- 128 Z- 1200 H- 120 Y- 1024 P- Plug-in Ind. Shielding
AV115 2- Dual Output: CE- 1" CP- 2 3/8" T- Flat Thru- 6- Single L- 240 4- 2048 A- 128 Z- 1200 Q- Plug-in Ind., 4xx- Special PPR
4 1/2" Pilot*, CF- 1 1/8" CR- 2 1/2" For AV85 only Hole Cover Ended: N- 256 5- 2500 L- 240 4- 2048 18" cable, 9xx- Special Cable
8 1/2" Pilot CG- 1 1/4" TS- 2 5/8" w/ Shaft 5-24V in/ P- 300 D- 4096 N- 256 5- 2500 remote Length, xx-
CH- 1 3/8" TU- 2 7/8" Seal 5-24V out E- 360 8- 4800 P- 300 D- 4096 mounting base feet (xx-feet
* Dual Output NA CT- 1 1/2" TV- 3" hi power B- 480 9- 5000 E- 360 8- 4800 W- 3' Flex. Cable [0.3m])
on AV56S, AV67A, CJ- 1 5/8" T4- 3 1/8" 9- Remote TTL: R- 512 0- spcl B- 480 9- 5000 Z- Plug-in Ind.,
XR67A CK- 1 3/4" T7- 3 3/16" 5-24V in, 5V S- 600 R- 512 0- spcl 3' Flex. Cable
fixed out V- 900 S- 600
or choose metric size below
Thru Shaft (metric)
XR56A as above D2- 10mm DM- 45mm as above as above X- none as above as above Contact Factory as above
XR67A DA- 11mm DN- 48mm H- ATEX
XR85A D3- 12mm DP- 52mm Zone 0/20
XR115 DB- 14mm DR- 55mm 12-24V
DC- 15mm MS- 60mm 5- ATEX
DD- 16mm MU- 65mm Zone 1/21
D4- 18mm MV- 70mm 12-24V See manual for all
DE- 19mm MW-75mm 7- ATEX options
DF- 24mm MY- 80mm Zone 2/22
DG- 28mm MZ- 85mm 5-24V
DH- 30mm F- UL Class I/II,
DT- 32mm Div 1 12-24V
DJ- 36mm G- UL Class I/II,
DK- 38mm Div 2 5-24V
DL- 42mm
9
