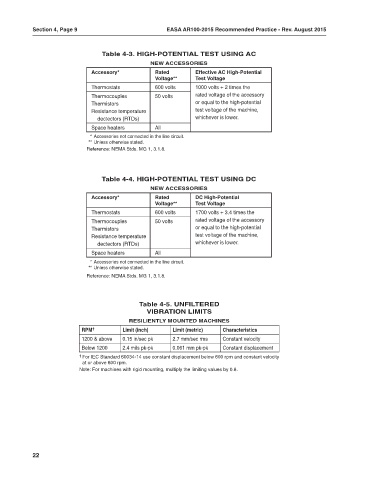

Section 4, Page 9 EASA AR100-2015 Recommended Practice - Rev. August 2015

Table 4-3. HIGH-POTENTIAL TEST USING AC
NEW ACCESSORIES
Accessory* Rated Effective AC High-Potential
Voltage** Test Voltage
Thermostats 600 volts 1000 volts + 2 times the
Thermocouples 50 volts rated voltage of the accessory
Thermistors or equal to the high-potential
Resistance temperature test voltage of the machine,
dectectors (RTDs) whichever is lower.
Space heaters All
* Accessories not connected in the line circuit.
** Unless otherwise stated.
Reference: NEMA Stds. MG 1, 3.1.8.

Table 4-4. HIGH-POTENTIAL TEST USING DC
NEW ACCESSORIES
Accessory* Rated DC High-Potential
Voltage** Test Voltage
Thermostats 600 volts 1700 volts + 3.4 times the
Thermocouples 50 volts rated voltage of the accessory
Thermistors or equal to the high-potential
Resistance temperature test voltage of the machine,
dectectors (RTDs) whichever is lower.
Space heaters All
* Accessories not connected in the line circuit.
** Unless otherwise stated.
Reference: NEMA Stds. MG 1, 3.1.8.

Table 4-5. UNFILTERED
VIBRATION LIMITS
RESILIENTLY MOUNTED MACHINES
RPM † Limit (inch) Limit (metric) Characteristics
1200 & above 0.15 in/sec pk 2.7 mm/sec rms Constant velocity
Below 1200 2.4 mils pk-pk 0.061 mm pk-pk Constant displacement
† For IEC Standard 60034-14 use constant displacement below 600 rpm and constant velocity
at or above 600 rpm.
Note: For machines with rigid mounting, multiply the limiting values by 0.8.
