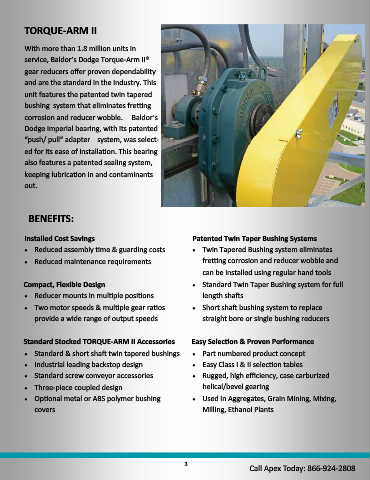

TORQUE-ARM II

With more than 1.8 million units in

service, Baldor’s Dodge Torque-Arm II®
gear reducers offer proven dependability
and are the standard in the industry. This

unit features the patented twin tapered
bushing system that eliminates fretting
corrosion and reducer wobble. Baldor’s

Dodge Imperial bearing, with its patented
“push/ pull” adapter system, was select-
ed for its ease of installation. This bearing

also features a patented sealing system,
keeping lubrication in and contaminants

out.

BENEFITS:

Installed Cost Savings Patented Twin Taper Bushing Systems

• Reduced assembly time & guarding costs • Twin Tapered Bushing system eliminates
• Reduced maintenance requirements fretting corrosion and reducer wobble and

can be installed using regular hand tools
Compact, Flexible Design • Standard Twin Taper Bushing system for full
• Reducer mounts in multiple positions length shafts

• Two motor speeds & multiple gear ratios • Short shaft bushing system to replace
provide a wide range of output speeds straight bore or single bushing reducers

Standard Stocked TORQUE-ARM II Accessories Easy Selection & Proven Performance
• Standard & short shaft twin tapered bushings • Part numbered product concept
• Industrial leading backstop design • Easy Class I & II selection tables

• Standard screw conveyor accessories • Rugged, high efficiency, case carburized
• Three-piece coupled design helical/bevel gearing

• Optional metal or ABS polymer bushing • Used in Aggregates, Grain Mining, Mixing,
covers Milling, Ethanol Plants

3
