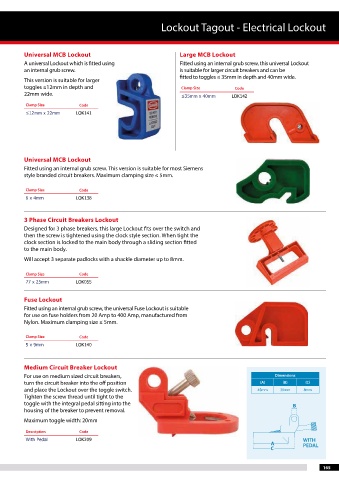

Lockout Tagout - Electrical Lockout

Universal MCB Lockout Large MCB Lockout
A universal Lockout which is tted using Fitted using an internal grub screw, this universal Lockout
an internal grub screw. is suitable for larger circuit breakers and can be
tted to toggles ≤ 35mm in depth and 40mm wide.
This version is suitable for larger
toggles ≤12mm in depth and Clamp Size Code
22mm wide. ” PP [ PP LOK142
Clamp Size Code
” PP [ PP LOK141

Universal MCB Lockout
Fitted using an internal grub screw. This version is suitable for most Siemens
style branded circuit breakers. Maximum clamping size ≤ 5mm.

Clamp Size Code
6 x 4mm LOK138

3 Phase Circuit Breakers Lockout
Designed for 3 phase breakers, this large Lockout ts over the switch and
then the screw is tightened using the clock style section. When tight the
clock section is locked to the main body through a sliding section tted
to the main body.
Will accept 3 separate padlocks with a shackle diameter up to 8mm.

Clamp Size Code
77 x 25mm LOK055

Fuse Lockout
Fitted using an internal grub screw, the universal Fuse Lockout is suitable
for use on fuse holders from 20 Amp to 400 Amp, manufactured from
Nylon. Maximum clamping size ≤ 5mm.

Clamp Size Code
5 x 9mm LOK140

Medium Circuit Breaker Lockout
For use on medium sized circuit breakers, Dimensions
turn the circuit breaker into the o position (A) (B) (C)
and place the Lockout over the toggle switch. 45mm 39mm 8mm
Tighten the screw thread until tight to the
toggle with the integral pedal sitting into the
housing of the breaker to prevent removal.
Maximum toggle width: 20mm

Description Code
With Pedal LOK209 WITH
PEDAL

165
