EOS 90446-A-PHY-0011-X-ray chain setting (polynome, PDS,…).docx

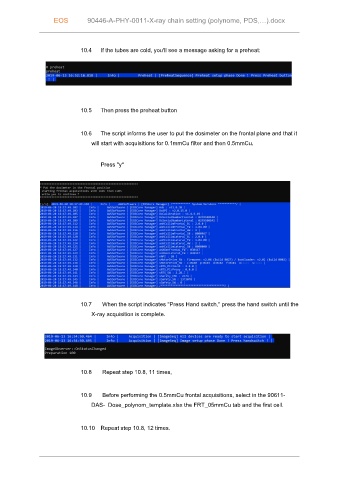

10.4 If the tubes are cold, you'll see a message asking for a preheat:
10.5 Then press the preheat button
10.6 The script informs the user to put the dosimeter on the frontal plane and that it
will start with acquisitions for 0.1mmCu filter and then 0.5mmCu.
Press "y"
10.7 When the script indicates "Press Hand switch," press the hand switch until the
X-ray acquisition is complete.
10.8 Repeat step 10.8, 11 times,
10.9 Before performing the 0.5mmCu frontal acquisitions, select in the 90611-
DAS- Dose_polynom_template.xlsx the FRT_05mmCu tab and the first cell.
10.10 Repeat step 10.8, 12 times.
