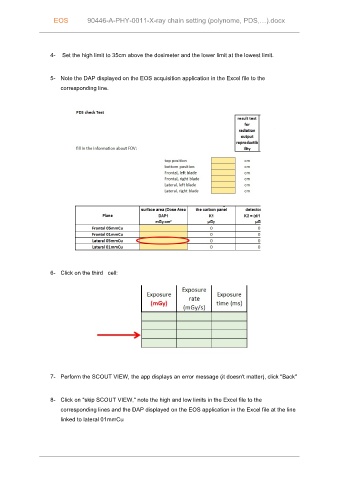

EOS 90446-A-PHY-0011-X-ray chain setting (polynome, PDS,…).docx

4- Set the high limit to 35cm above the dosimeter and the lower limit at the lowest limit.

5- Note the DAP displayed on the EOS acquisition application in the Excel file to the
corresponding line.

6- Click on the third cell:

7- Perform the SCOUT VIEW, the app displays an error message (it doesn't matter), click "Back"

8- Click on "skip SCOUT VIEW," note the high and low limits in the Excel file to the
corresponding lines and the DAP displayed on the EOS application in the Excel file at the line
linked to lateral 01mmCu
