EOS 90637-A-PHY-0022_Detector mounting

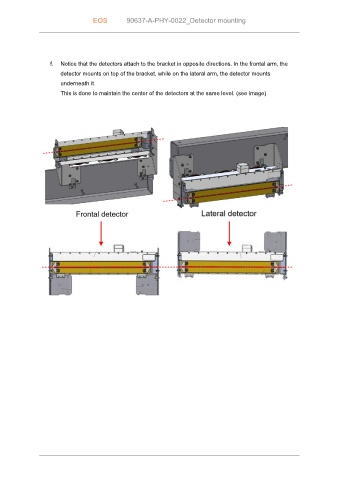

f. Notice that the detectors attach to the bracket in opposite directions. In the frontal arm, the
detector mounts on top of the bracket, while on the lateral arm, the detector mounts
underneath it.
This is done to maintain the center of the detectors at the same level. (see image)
