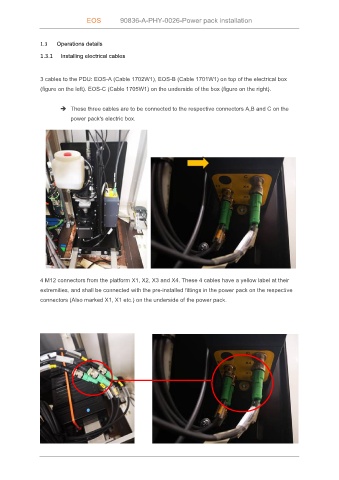

EOS 90836-A-PHY-0026-Power pack installation

1.3 Operations details
1.3.1 Installing electrical cables

3 cables to the PDU: EOS-A (Cable 1702W1), EOS-B (Cable 1701W1) on top of the electrical box

(figure on the left). EOS-C (Cable 1705W1) on the underside of the box (figure on the right).

 These three cables are to be connected to the respective connectors A,B and C on the
power pack's electric box.

4 M12 connectors from the platform X1, X2, X3 and X4. These 4 cables have a yellow label at their
extremities, and shall be connected with the pre-installed fittings in the power pack on the respective
connectors (Also marked X1, X1 etc.) on the underside of the power pack.
