EOS 90640-A-PHY-0025 Motor Assembly

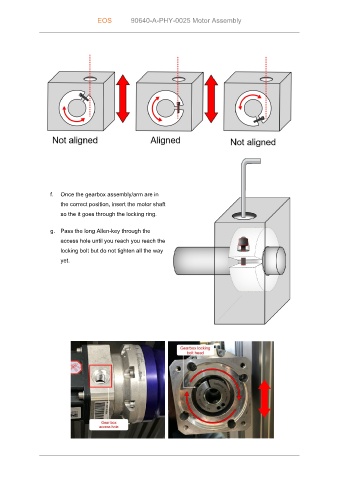

f. Once the gearbox assembly/arm are in
the correct position, insert the motor shaft
so the it goes through the locking ring.
g. Pass the long Allen-key through the
access hole until you reach you reach the
locking bolt but do not tighten all the way
yet.
