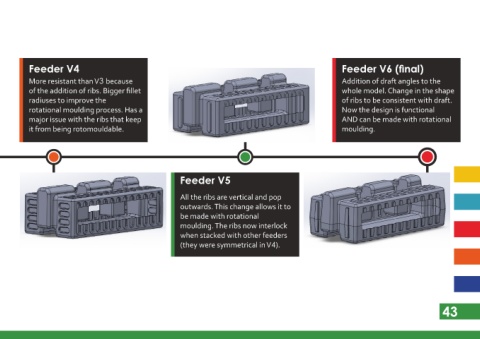

Feeder V4 Feeder V6 (final)
More resistant than V3 because Addition of draft angles to the
of the addition of ribs. Bigger fillet whole model. Change in the shape
radiuses to improve the of ribs to be consistent with draft.
rotational moulding process. Has a Now the design is functional
major issue with the ribs that keep AND can be made with rotational
it from being rotomouldable. moulding.
Feeder V5
All the ribs are vertical and pop
outwards. This change allows it to
be made with rotational
moulding. The ribs now interlock
when stacked with other feeders
(they were symmetrical in V4).
