Page 9 - Jorge Bustos Parra
P. 9

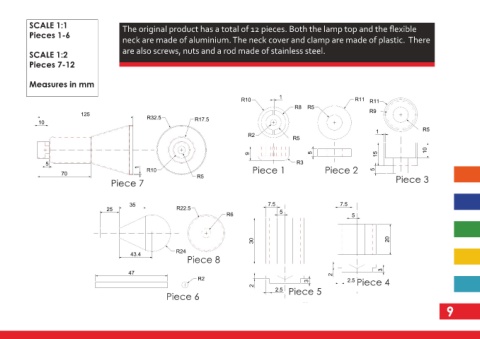

SCALE 1:1 The original product has a total of 12 pieces. Both the lamp top and the flexible
Pieces 1-6
neck are made of aluminium. The neck cover and clamp are made of plastic. There
SCALE 1:2 are also screws, nuts and a rod made of stainless steel.
Pieces 7-12
Measures in mm
Piece 1 Piece 2
Piece 7 Piece 3
Piece 8
Piece 4
Piece 5
Piece 6
9
