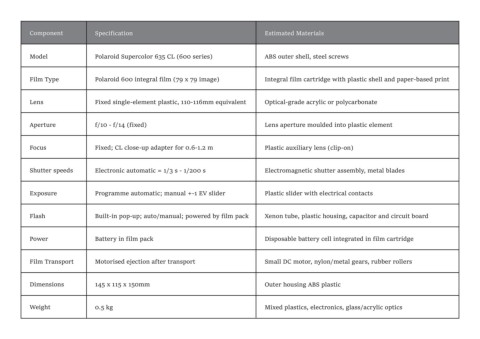

Component Specification Estimated Materials

Model Polaroid Supercolor 635 CL (600 series) ABS outer shell, steel screws

Film Type Polaroid 600 integral film (79 x 79 image) Integral film cartridge with plastic shell and paper-based print

Lens Fixed single-element plastic, 110-116mm equivalent Optical-grade acrylic or polycarbonate

Aperture f/10 - f/14 (fixed) Lens aperture moulded into plastic element

Focus Fixed; CL close-up adapter for 0.6-1.2 m Plastic auxiliary lens (clip-on)

Shutter speeds Electronic automatic = 1/3 s - 1/200 s Electromagnetic shutter assembly, metal blades

Exposure Programme automatic; manual +-1 EV slider Plastic slider with electrical contacts

Flash Built-in pop-up; auto/manual; powered by film pack Xenon tube, plastic housing, capacitor and circuit board

Power Battery in film pack Disposable battery cell integrated in film cartridge

Film Transport Motorised ejection after transport Small DC motor, nylon/metal gears, rubber rollers

Dimensions 145 x 115 x 150mm Outer housing ABS plastic

Weight 0.5 kg Mixed plastics, electronics, glass/acrylic optics
