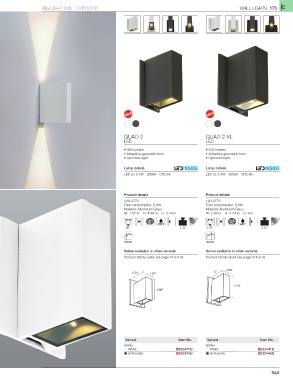

BIG LIGHT 2017 ∙ OUTDOOR WALL LIGHTS 173

QUAD 2 QUAD 2 XL
LED LED
• 400 lumens • 500 lumens
• Attractive geometric form • Attractive geometric form
• Up/Down light • Up/Down light
Lamp details Lamp details
LED 2x 3.4W 3000K CRI>80 LED 2x 4.3W 3000K CRI>80

Product details Product details
120-277V 120-277V
Total consumption: 6.8W Total consumption: 8.6W
Material: Aluminum/Glass Material: Aluminum/Glass
W: 1.57 in. H: 4.88 in. D: 3.74 in. W: 2.08 in. H: 3.74 in. D: 4 in.

60° 1.32 110° 2.13

30000 30000

Series available in other variants Series available in other variants
Product family Quad see page 014–019. Product family Quad see page 014–019.

2.08”
3.74” 1.57” 4”

3.74”
4.88”

Variant Item No. Variant Item No.
400lm 500lm
White 232471U White 232441U
Anthracite 232475U Anthracite 232445U
