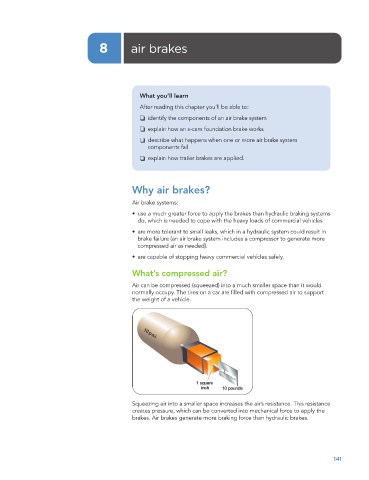

8 air brakes

What you’ll learn
After reading this chapter you’ll be able to:

❏ identify the components of an air brake system
❏ explain how an s-cam foundation brake works
❏ describe what happens when one or more air brake system
components fail

❏ explain how trailer brakes are applied.

Why air brakes?

Air brake systems:
• use a much greater force to apply the brakes than hydraulic braking systems
do, which is needed to cope with the heavy loads of commercial vehicles
• are more tolerant to small leaks, which in a hydraulic system could result in
brake failure (an air brake system includes a compressor to generate more
compressed air as needed).

• are capable of stopping heavy commercial vehicles safely.

What’s compressed air?

Air can be compressed (squeezed) into a much smaller space than it would
normally occupy. The tires on a car are filled with compressed air to support
the weight of a vehicle.

Squeezing air into a smaller space increases the air’s resistance. This resistance
creates pressure, which can be converted into mechanical force to apply the
brakes. Air brakes generate more braking force than hydraulic brakes.

141
