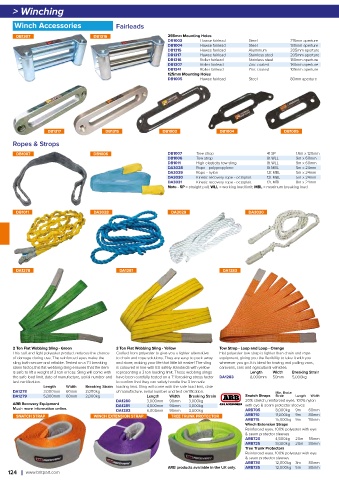

Page 120 - JGS4x4 CATALOGUE

> Winching

Winch Accessories Fairleads

DB1307 DB1316 255mm Mounting Holes
DB1003 Hawse fairlead Steel 215mm aperture
DB1004 Hawse fairlead Steel 130mm aperture
DB1315 Hawse fairlead Aluminium 205mm aperture
DB1317 Hawse fairlead Stainless steel 205mm aperture
DB1316 Roller fairlead Stainless steel 180mm aperture
DB1307 Roller fairlead Zinc coated 180mm aperture
DB1341 Roller fairlead Zinc coated 105mm aperture
125mm Mounting Holes
DB1005 Hawse fairlead Steel 80mm aperture

DB1317 DB1315 DB1003 DB1004 DB1005

Ropes & Strops
DB1007 DB1006 DB1007 Tree strop 4t SP 1.6m x 120mm
DB1006 Tow strap 8t WLL 9m x 60mm
DB1011 High elasticity tow sling 8t WLL 9m x 60mm
DA3028 Rope - polypropylene 8t MBL 5m x 24mm
DA3029 Rope - nylon 12t MBL 5m x 24mm
DA3030 Kinetic recovery rope - octoplait 12t MBL 5m x 24mm
DA3031 Kinetic recovery rope - octoplait 12t MBL 8m x 24mm
Note - SP = straight pull; WLL = working load limit; MBL = maximum breaking load

DB1011 DA3028 DA3029 DA3030

DA1278 DA1281 DA1283

2 Ton Flat Webbing Sling - Green 3 Ton Flat Webbing Sling - Yellow Tow Strap - Loop and Loop - Orange
This soft and light polyester product reduces the chance Crafted from polyester to give you a lighter alternative Flat polyester tow strap is lighter than chain and rope
of damage during use. The reinforced eyes make the to chain and rope solutions. They are easy to pack away equipment, giving you the flexibility to take it with you
sling both secure and reliable. Tested on a 7:1 breaking and store, making your life that little bit easier! The sling wherever you go. It is ideal for towing and pulling vans,
strain factor, this flat webbing sling ensures that the item is coloured in line with EU safety standards with yellow caravans, cars and agricultural vehicles.
is safe to lift a weight of 2 ton or less. Sling will come with representing a 3 ton loading limit. These webbing slings Length Width Breaking Strain
the safe load limit, date of manufacture, serial number and have been carefully tested on a 7:1 breaking stress factor DA1283 8,000mm 50mm 5,000kg
test certification. to confirm that they can safely handle the 3 ton safe
Length Width Breaking Strain loading limit. Sling will come with the safe load limit, date
DA1278 3,000mm 60mm 2,000kg of manufacture, serial number and test certification. Min. Brake
DA1279 5,000mm 60mm 2,000kg Length Width Breaking Strain Snatch Straps Strain Length Width
DA1280 3,000mm 90mm 3,000kg 20% stretch, reinforced eyes. 100% nylon
ARB Recovery Equipment DA1281 4,000mm 90mm 3,000kg with eye & seam protector sleeves
Much more information online. DA1282 6,000mm 90mm 3,000kg ARB705 8,000kg 9m 60mm
SNATCH STRAP WINCH EXTENSION STRAP TREE TRUNK PROTECTOR ARB710 11,000kg 9m 80mm
ARB715 15,000kg 9m 110mm
Winch Extension Straps
Reinforced eyes. 100% polyester with eye
& seam protector sleeves
ARB720 4,500kg 20m 55mm
ARB725 8,000kg 20m 80mm
Tree Trunk Protectors
Reinforced eyes. 100% polyester with eye
& seam protector sleeves
ARB730 12,000kg 3m 80mm
ARB products available in the UK only. ARB735 12,000kg 5m 80mm
124 www.britpart.com
