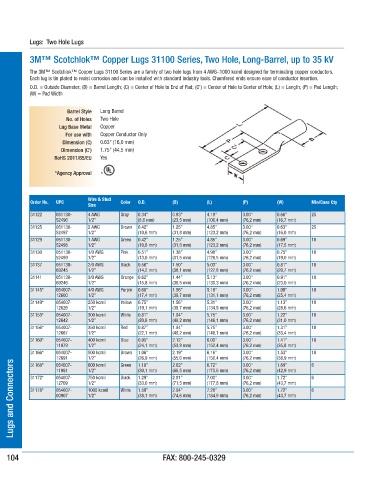

Lugs: Two Hole Lugs

3M™ Scotchlok™ Copper Lugs 31100 Series, Two Hole, Long-Barrel, up to 35 kV

The 3M™ Scotchlok™ Copper Lugs 31100 Series are a family of two hole lugs from 4 AWG–1000 kcmil designed for terminating copper conductors.
Each lug is tin plated to resist corrosion and can be installed with standard industry tools. Chamfered ends ensure ease of conductor insertion.
O.D. = Outside Diameter; (B) = Barrel Length; (C) = Center of Hole to End of Pad; (C’) = Center of Hole to Center of Hole; (L) = Length; (P) = Pad Length;
(W) = Pad Width

Barrel Style Long Barrel
No. of Holes Two Hole
Lug Base Metal Copper
For use with Copper Conductor Only
Dimension (C) 0.63” (16,0 mm)
Dimension (C’) 1.75” (44,5 mm)
RoHS 2011/65/EU Yes

*Agency Approval *

Wire & Stud
Order No. UPC Color O.D. (B) (L) (P) (W) Min/Case Qty
Size
31122 051138- 4 AWG Gray 0.34” 0.93” 4.19” 3.00” 0.66” 25
52496 1/2” (8,6 mm) (23,5 mm) (106,4 mm) (76,2 mm) (16,7 mm)
31125 051138- 2 AWG Brown 0.42” 1.25” 4.85” 3.00” 0.63” 25
52497 1/2” (10,6 mm) (31,8 mm) (123,2 mm) (76,2 mm) (16,0 mm)
31129 051138- 1 AWG Green 0.42” 1.25” 4.85” 3.00” 0.69” 10
52498 1/2” (10,6 mm) (31,8 mm) (123,2 mm) (76,2 mm) (17,5 mm)
31130 051138- 1/0 AWG Pink 0.51” 1.38” 4.98” 3.00” 0.75” 10
52499 1/2” (13,0 mm) (31,5 mm) (126,5 mm) (76,2 mm) (19,0 mm)
31137 051138- 2/0 AWG Black 0.56” 1.50” 5.03” 3.00” 0.81” 10
69245 1/2” (14,2 mm) (38,1 mm) (127,8 mm) (76,2 mm) (20,7 mm)
31141 051138- 3/0 AWG Orange 0.62” 1.44” 5.13” 3.00” 0.91” 10
69246 1/2” (15,8 mm) (36,5 mm) (130,3 mm) (76,2 mm) (23,0 mm)
31145* 054007- 4/0 AWG Purple 0.68” 1.56” 5.16” 3.00” 1.00” 10
12600 1/2” (17,4 mm) (39,7 mm) (131,1 mm) (76,2 mm) (25,4 mm)
31149* 054007- 250 kcmil Yellow 0.75” 1.56” 5.31” 3.00” 1.13” 10
12626 1/2” (19,1 mm) (39,7 mm) (134,9 mm) (76,2 mm) (28,6 mm)
31153* 054007- 300 kcmil White 0.81” 1.94” 5.75” 3.00” 1.22” 10
12642 1/2” (20,6 mm) (49,2 mm) (146,1 mm) (76,2 mm) (31,0 mm)
31156* 054007- 350 kcmil Red 0.87” 1.94” 5.75” 3.00” 1.31” 10
12667 1/2” (22,1 mm) (49,2 mm) (146,1 mm) (76,2 mm) (33,4 mm)
31160* 054007- 400 kcmil Blue 0.95” 2.12” 6.00” 3.00” 1.41” 10
11979 1/2” (24,1 mm) (53,8 mm) (152,4 mm) (76,2 mm) (35,8 mm)
31166* 054007- 500 kcmil Brown 1.06” 2.19” 6.16” 3.00” 1.53” 10
12691 1/2” Green (26,9 mm) (55,6 mm) (156,4 mm) (76,2 mm) (38,9 mm) 6 6
Lugs and Connectors 31178* 12709 1/2” White (33,0 mm) (71,5 mm) (177,8 mm) (76,2 mm) (43,7 mm) 6
054007-
1.18”
6.72”
3.00”
600 kcmil
1.69”
2.62”
31168*
(170,6 mm)
(30,1 mm)
(66,5 mm)
(42,9 mm)
11981
(76,2 mm)
1/2”
3.00”
7.00”
1.72”
2.81”
31172*
Black
750 kcmil
054007-
1.29”
1.50”
3.00”
054007-
7.28”
2.94”
1.72”
1000 kcmil
(43,7 mm)
(76,2 mm)
(74,6 mm)
(38,1 mm)
1/2”
00907
(184,9 mm)
