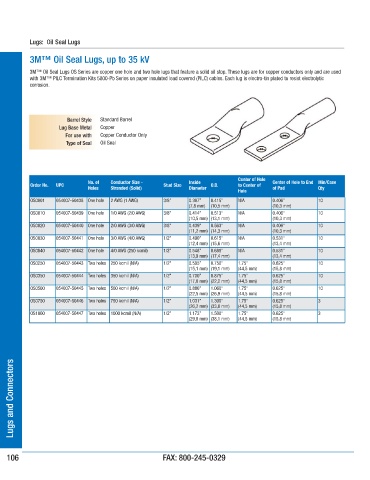

Lugs: Oil Seal Lugs

3M™ Oil Seal Lugs, up to 35 kV

3M™ Oil Seal Lugs OS Series are copper one hole and two hole lugs that feature a solid oil stop. These lugs are for copper conductors only and are used
with 3M™ PILC Termination Kits 5800-Pb Series on paper insulated lead covered (PILC) cables. Each lug is electro-tin plated to resist electrolytic
corrosion.

Barrel Style Standard Barrel
Lug Base Metal Copper
For use with Copper Conductor Only
Type of Seal Oil Seal

Center of Hole
No. of Conductor Size - Inside Center of Hole to End Min/Case
Order No. UPC Stud Size O.D. to Center of
Holes Stranded (Solid) Diameter of Pad Qty
Hole
OS0001 054007-50438 One hole 2 AWG (1 AWG) 3/8” 0.307” 0.415” N/A 0.406” 10
(7,8 mm) (10,5 mm) (10,3 mm)
OS0010 054007-50439 One hole 1/0 AWG (2/0 AWG) 3/8” 0.414” 0.513” N/A 0.406” 10
(10,5 mm) (13,1 mm) (10,3 mm)
OS0020 054007-50440 One hole 2/0 AWG (3/0 AWG) 3/8” 0.439” 0.563” N/A 0.406” 10
(11,2 mm) (14,3 mm) (10,3 mm)
OS0030 054007-50441 One hole 3/0 AWG (4/0 AWG) 1/2” 0.490” 0.615” N/A 0.531” 10
(12,4 mm) (15,6 mm) (13,4 mm)
OS0040 054007-50442 One hole 4/0 AWG (250 kcmil) 1/2” 0.548” 0.688” N/A 0.531” 10
(13,9 mm) (17,4 mm) (13,4 mm)
OS0250 054007-50443 Two holes 250 kcmil (N/A) 1/2” 0.595” 0.750” 1.75” 0.625” 10
(15,1 mm) (19,1 mm) (44,5 mm) (15,8 mm)
OS0350 054007-50444 Two holes 350 kcmil (N/A) 1/2” 0.700” 0.875” 1.75” 0.625” 10
(17,8 mm) (22,2 mm) (44,5 mm) (15,8 mm)
OS0500 054007-50445 Two holes 500 kcmil (N/A) 1/2” 0.886” 1.060” 1.75” 0.625” 10
(22,5 mm) (26,9 mm) (44,5 mm) (15,8 mm)
OS0750 054007-50446 Two holes 750 kcmil (N/A) 1/2” 1.031” 1.300” 1.75” 0.625” 3
(26,2 mm) (33,0 mm) (44,5 mm) (15,8 mm)
OS1000 054007-50447 Two holes 1000 kcmil (N/A) 1/2” 1.173” 1.500” 1.75” 0.625” 3
(29,8 mm) (38,1 mm) (44,5 mm) (15,8 mm)
