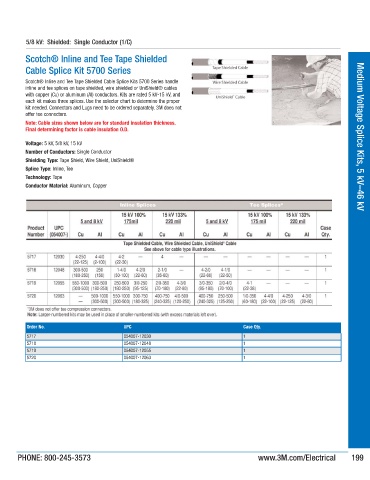

Page 198 - 3M ELECTRICAL PRODUCTS CATALOG - 596-PAGES

IronwoodPremium_474114_Catalog-On-Demand5.QXD 6/16/2015 11:35 PM Page 199

5/8 kV: Shielded: Single Conductor (1/C)

Scotch® Inline and Tee Tape Shielded

Cable Splice Kit 5700 Series
Scotch® Inline and Tee Tape Shielded Cable Splice Kits 5700 Series handle
inline and tee splices on tape shielded, wire shielded or UniShield® cables
with copper (Cu) or aluminum (Al) conductors. Kits are rated 5 kV-15 kV, and
each kit makes three splices. Use the selector chart to determine the proper
kit needed. Connectors and Lugs need to be ordered separately. 3M does not
offer tee connectors. Medium Voltage Splice Kits,
Note: Cable sizes shown below are for standard insulation thickness.
Final determining factor is cable insulation O.D.

Voltage: 5 kV, 5/8 kV, 15 kV
Number of Conductors: Single Conductor
Shielding Type: Tape Shield, Wire Shield, UniShield®
Splice Type: Inline, Tee
Technology: Tape
Conductor Material: Aluminum, Copper 5 kV–46 kV

Order No. UPC Case Qty.
5717 054007-12030 1
5718 054007-12048 1
5719 054007-12055 1
5720 054007-12063 1
