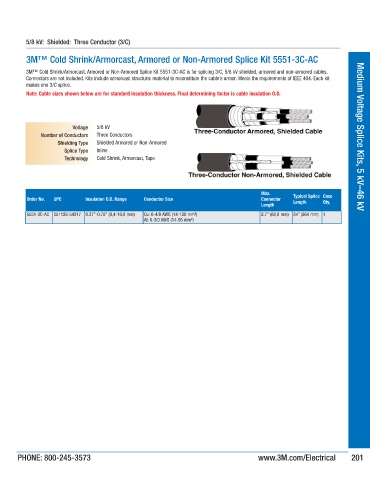

5/8 kV: Shielded: Three Conductor (3/C)

3M™ Cold Shrink/Armorcast, Armored or Non-Armored Splice Kit 5551-3C-AC

3M™ Cold Shrink/Armorcast, Armored or Non-Armored Splice Kit 5551-3C-AC is for splicing 3/C, 5/8 kV shielded, armored and non-armored cables.
Connectors are not included. Kits include armorcast structural material to reconstitute the cable’s armor. Meets the requirements of IEEE 404. Each kit
makes one 3/C splice.
Note: Cable sizes shown below are for standard insulation thickness. Final determining factor is cable insulation O.D.

Voltage 5/8 kV Medium Voltage Splice Kits,
Number of Conductors Three Conductors
Shielding Type Shielded Armored or Non-Armored
Splice Type Inline
Technology Cold Shrink, Armorcast, Tape

Max. 5 kV–46 kV
Order No. UPC Insulation O.D. Range Conductor Size Connector Typical Splice Case
Length Qty.
Length
5551-3C-AC 051128-54317 0.37”-0.78” (9,4-19,8 mm) Cu: 6-4/0 AWG (14-120 mm²) 2.7” (68,6 mm) 34” (864 mm) 1
Al: 6-3/0 AWG (14-95 mm²)
