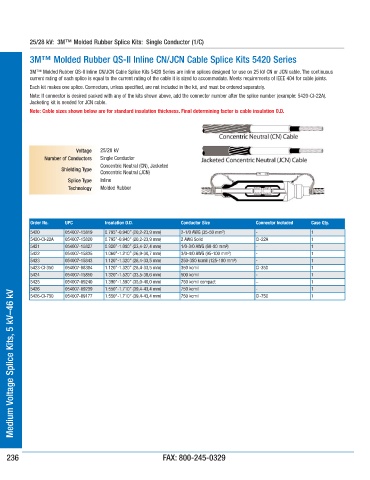

25/28 kV: 3M™ Molded Rubber Splice Kits: Single Conductor (1/C)

3M™ Molded Rubber QS-II Inline CN/JCN Cable Splice Kits 5420 Series

3M™ Molded Rubber QS-II Inline CN/JCN Cable Splice Kits 5420 Series are inline splices designed for use on 25 kV CN or JCN cable. The continuous
current rating of each splice is equal to the current rating of the cable it is sized to accommodate. Meets requirements of IEEE 404 for cable joints.
Each kit makes one splice. Connectors, unless specified, are not included in the kit, and must be ordered separately.
Note: If connector is desired packed with any of the kits shown above, add the connector number after the splice number (example: 5420-CI-22A).
Jacketing kit is needed for JCN cable.
Note: Cable sizes shown below are for standard insulation thickness. Final determining factor is cable insulation O.D.

Voltage 25/28 kV
Number of Conductors Single Conductor
Concentric Neutral (CN), Jacketed
Shielding Type
Concentric Neutral (JCN)
Splice Type Inline
Technology Molded Rubber

Order No. UPC Insulation O.D. Conductor Size Connector Included Case Qty.
5420 054007-15819 0.795”-0.940” (20,2-23,9 mm) 2-1/0 AWG (35-50 mm²) - 1
5420-CI-22A 054007-15820 0.795”-0.940” (20,2-23,9 mm) 2 AWG Solid CI-22A 1
5421 054007-15827 0.920”-1.080” (23,4-27,4 mm) 1/0-3/0 AWG (60-80 mm²) - 1
5422 054007-15835 1.060”-1.210” (26,9-30,7 mm) 3/0-4/0 AWG (95-100 mm²) - 1
5423 054007-15843 1.120”-1.320” (28,4-33,5 mm) 250-350 kcmil (125-180 mm²) - 1
5423-CI-350 054007-08384 1.120”-1.320” (28,4-33,5 mm) 350 kcmil CI-350 1
5424 054007-15850 1.320”-1.520” (33,5-38,6 mm) 500 kcmil - 1
5425 054007-09240 1.390”-1.590” (35,0-40,0 mm) 750 kcmil compact – 1
5426 054007-09239 1.550”-1.710” (39,4-43,4 mm) 750 kcmil - CI-750 1 1
5 kV–46 kV
1.550”-1.710” (39,4-43,4 mm)
750 kcmil
054007-09177
5426-CI-750

Medium Voltage Splice Kits,
