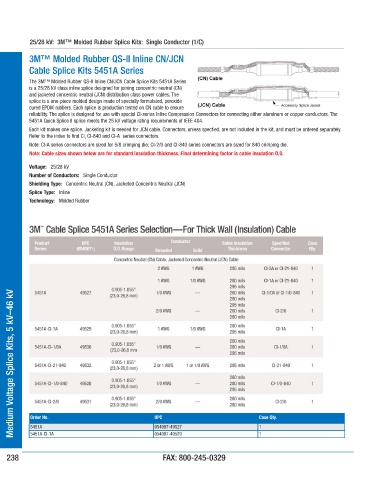

25/28 kV: 3M™ Molded Rubber Splice Kits: Single Conductor (1/C)

3M™ Molded Rubber QS-II Inline CN/JCN

Cable Splice Kits 5451A Series
The 3M™ Molded Rubber QS-II Inline CN/JCN Cable Splice Kits 5451A Series
is a 25/28 kV class inline splice designed for joining concentric neutral (CN)
and jacketed concentric neutral (JCN) distribution class power cables. The
splice is a one-piece molded design made of specially formulated, peroxide
cured EPDM rubbers. Each splice is production tested on CN cable to ensure
reliability. The splice is designed for use with special CI-series Inline Compression Connectors for connecting either aluminum or copper conductors. The
5451A Quick Splice II splice meets the 25 kV voltage rating requirements of IEEE 404.
Each kit makes one splice. Jacketing kit is needed for JCN cable. Connectors, unless specfied, are not included in the kit, and must be ordered separately.
Refer to the index to find CI, CI-840 and CI-A series connectors.
Note: CI-A series connectors are sized for 5/8 crimping die; CI-2/0 and CI-840 series connectors are sized for 840 crimping die.
Note: Cable sizes shown below are for standard insulation thickness. Final determining factor is cable insulation O.D.

Voltage: 25/28 kV
Number of Conductors: Single Conductor
Shielding Type: Concentric Neutral (CN), Jacketed Concentric Neutral (JCN)
Splice Type: Inline
Technology: Molded Rubber

5 kV–46 kV

Medium Voltage Splice Kits, Order No. UPC Case Qty.

5451A-CI-1A
054007-49529

FAX: 800-245-0329
238 5451A 054007-49527 1 1
