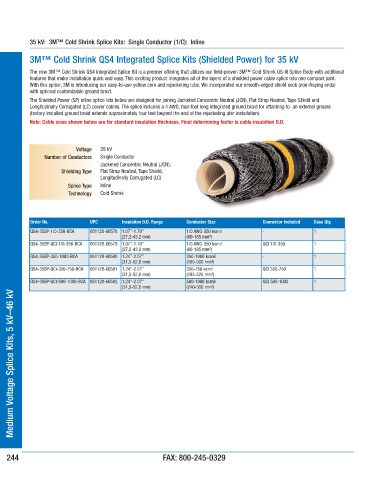

35 kV: 3M™ Cold Shrink Splice Kits: Single Conductor (1/C): Inline

3M™ Cold Shrink QS4 Integrated Splice Kits (Shielded Power) for 35 kV

The new 3M™ Cold Shrink QS4 Integrated Splice Kit is a premier offering that utilizes our field-proven 3M™ Cold Shrink QS-III Splice Body with additional
features that make installation quick and easy. This exciting product integrates all of the layers of a shielded power cable splice into one compact joint.
With this splice, 3M is introducing our easy-to-use yellow core and rejacketing tube. We incorporated our smooth-edged shield sock (non-fraying ends)
with optional customizable ground braid.
The Shielded Power (SP) inline splice kits below are designed for joining Jacketed Concentric Neutral (JCN), Flat Strap Neutral, Tape Shield and
Longitudinally Corrugated (LC) power cables. The splice includes a 4 AWG, four-foot long integrated ground braid for attaching to an external ground
(factory installed ground braid extends approximately four feet beyond the end of the rejacketing afer installation).
Note: Cable sizes shown below are for standard insulation thickness. Final determining factor is cable insulation O.D.

Voltage 35 kV
Number of Conductors Single Conductor
Jacketed Concentric Neutral (JCN),
Shielding Type Flat Strap Neutral, Tape Shield,
Longitudinally Corrugated (LC)
Splice Type Inline
Technology Cold Shrink

Order No. UPC Insulation O.D. Range Conductor Size Connector Included Case Qty.
QS4-35SP-1/0-350-BCA 051128-60578 1.07”-1.70” 1/0 AWG-350 kcmil - 1
(27,2-43,2 mm) (60-185 mm²)
QS4-35SP-QCI-1/0-350-BCA 051128-60579 1.07”-1.70” 1/0 AWG-350 kcmil QCI 1/0-350 1
(27,2-43,2 mm) (60-185 mm²)
QS4-35SP-350-1000-BCA 051128-60580 1.24”-2.07” 350-1000 kcmil - 1
(31,5-52,6 mm) (185-500 mm²)
QS4-35SP-QCI-350-750-BCA 051128-60581 1.24”-2.07” 350-750 kcmil QCI 350-750 1
(31,5-52,6 mm) (185-325 mm²)
QS4-35SP-QCI-500-1000-BCA 051128-60582 1.24”-2.07” 500-1000 kcmil QCI 500-1000 1
(31,5-52,6 mm) (240-500 mm²)
5 kV–46 kV

Medium Voltage Splice Kits,
