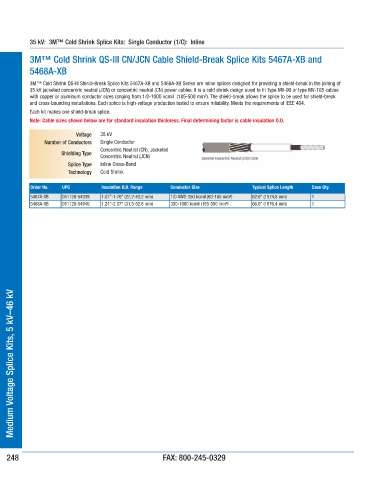

35 kV: 3M™ Cold Shrink Splice Kits: Single Conductor (1/C): Inline

3M™ Cold Shrink QS-III CN/JCN Cable Shield-Break Splice Kits 5467A-XB and

5468A-XB

3M™ Cold Shrink QS-III Shield-Break Splice Kits 5467A-XB and 5468A-XB Series are inline splices designed for providing a shield-break in the joining of
35 kV jacketed concentric neutral (JCN) or concentric neutral (CN) power cables. It is a cold shrink design sized to fit Type MV-90 or type MV-105 cables
with copper or aluminum conductor sizes ranging from 1/0-1000 kcmil (185-500 mm²). The shield-break allows the splice to be used for shield-break
and cross-bounding installations. Each splice is high-voltage production tested to ensure reliability. Meets the requirements of IEEE 404.
Each kit makes one shield-break splice.
Note: Cable sizes shown below are for standard insulation thickness. Final determining factor is cable insulation O.D.

Voltage 35 kV
Number of Conductors Single Conductor
Concentric Neutral (CN), Jacketed
Shielding Type
Concentric Neutral (JCN)
Splice Type Inline Cross-Bond
Technology Cold Shrink

Order No. UPC Insulation O.D. Range Conductor Size Typical Splice Length Case Qty.
5467A-XB 051128-54939 1.07”-1.70” (27,2-43,2 mm) 1/0 AWG-350 kcmil (60-185 mm²) 62.0” (1574,8 mm) 1
5468A-XB 051128-54940 1.24”-2.07” (31,5-52,6 mm) 350-1000 kcmil (185-500 mm²) 66.0” (1676,4 mm) 1
