Three Core Tape Shield, Wire Shield & UniShield® Cable, 5-35 kV: 3M™ Cold Shrink QT-III Terminations

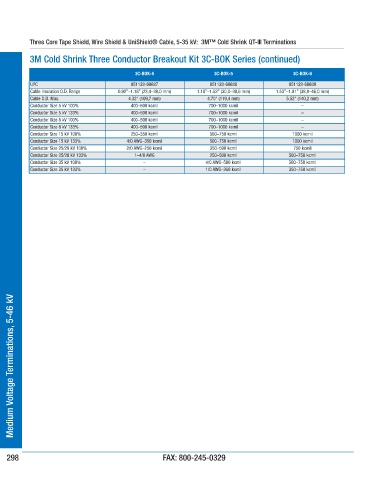

3M Cold Shrink Three Conductor Breakout Kit 3C-BOK Series (continued)

3C-BOK-4 3C-BOK-5 3C-BOK-6
UPC 051128-60687 051128-60688 051128-60689
Cable Insulation O.D. Range 0.92”–1.18” (23,4–30,0 mm) 1.18”–1.52” (30,0–38,6 mm) 1.53”–1.81” (38,8–46,0 mm)
Cable O.D. Max. 4.32” (109,7 mm) 4.70” (119,4 mm) 5.52” (140,2 mm)
Conductor Size 5 kV 100% 400–500 kcmil 700–1000 kcmil –
Conductor Size 5 kV 133% 400–500 kcmil 700–1000 kcmil –
Conductor Size 8 kV 100% 400–500 kcmil 700–1000 kcmil –
Conductor Size 8 kV 133% 400–500 kcmil 700–1000 kcmil –
Conductor Size 15 kV 100% 250–350 kcmil 500–750 kcmil 1000 kcmil
Conductor Size 15 kV 133% 4/0 AWG–350 kcmil 500–750 kcmil 1000 kcmil
Conductor Size 25/28 kV 100% 2/0 AWG–250 kcmil 350–500 kcmil 750 kcmil
Conductor Size 25/28 kV 133% 1–4/0 AWG 250–500 kcmil 500–750 kcmil
Conductor Size 35 kV 100% – 4/0 AWG–500 kcmil 500–750 kcmil
Conductor Size 35 kV 133% – 1/0 AWG–350 kcmil 350–750 kcmil

5-46 kV Medium Voltage Terminations,
