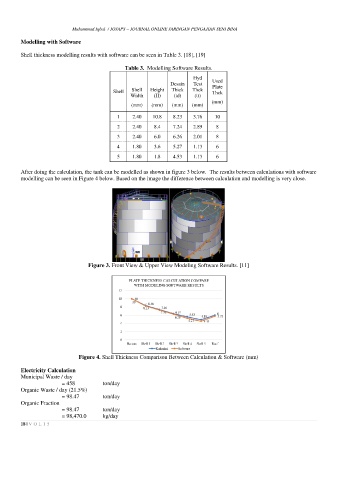

Modelling with Software

Shell thickness modelling results with software can be seen in Table 3. [18], [19]

Table 3. Modelling Software Results.
Hyd
Desain Test Used
Plate
Shell Shell Height Thick Thck Thck
Width (H) (td) (tt)
(mm)
(mm) (mm) (mm) (mm)
1 2.40 10.8 8.23 3.76 10
2 2.40 8.4 7.24 2.89 8
3 2.40 6.0 6.26 2.01 8

4 1.80 3.6 5.27 1.13 6
5 1.80 1.8 4.53 1.13 6

After doing the calculation, the tank can be modelled as shown in figure 3 below. The results between calculations with software
modelling can be seen in Figure 4 below. Based on the image the difference between calculation and modelling is very close.

Figure 3. Front View & Upper View Modeling Software Results. [11]

Figure 4. Shell Thickness Comparison Between Calculation & Software (mm)

Electricity Calculation
Municipal Waste / day
= 458 ton/day
Organic Waste / day (21.5%)
= 98.47 ton/day
Organic Fraction
= 98.47 ton/day
= 98,470.0 kg/day
