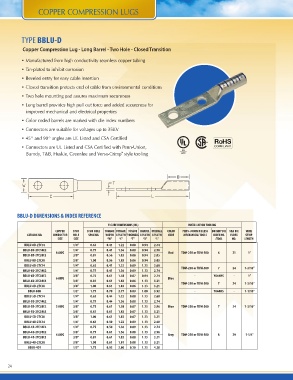

Page 24 - PUC Compression Connectors FLIPBOOK_080415

COPPER COMPRESSION LUGS

TYPE BBLU-D

Copper Compression Lug - Long Barrel - Two Hole - Closed Transition

• Manufactured from high conductivity seamless copper tubing
• Tin-plated to inhibit corrosion
• Beveled entry for easy cable insertion
• Closed transition protects end of cable from environmental conditions
• Two hole mounting pad assures maximum secureness
• Long barrel provides high pull out force and added secureness for
improved mechanical and electrical properties
• Color coded barrels are marked with die index numbers
• Connectors are suitable for voltages up to 35KV
• 45° and 90° angles are UL Listed and CSA Certified
• Connectors are UL Listed and CSA Certified with Penn-Union,
Burndy, T&B, Huskie, Greenlee and Versa-Crimp® style tooling

BBLU-D DIMENSIONS & INDEX REFERENCE

FIGURE DIMENSIONS (IN.) INSTALLATION TOOLING

COPPER STUD STUD HOLE TONGUE TONGUE TONGUE BARREL OVERALL COLOR PENN-UNION DIELESS BURNDY DIE T&B DIE WIRE
CATALOG NO. CONDUCTOR HOLE SPACING WIDTH LENGTH THICKNESS LENGTH LENGTH CODE MECHANICAL TOOLS INDEX NO. INDEX STRIP
SIZE Red /TOOL NO. LENGTH
BBLU-8D-2TC14 SIZE 0.63 “W” “C” “T” “B” “L” Blue
BBLU-8D-2TC14E2 8 AWG 1/4” 0.75 Blue TDM-250 or TDM-500 6 21 1”
BBLU-8D-2TC38E3 6 AWG 1/4” 0.81 0.41 1.22 0.08 0.94 2.44 Gray
BBLU-8D-2TC38 3/8” 1.00 0.41 1.36 0.08 0.94 2.58 TDM-250 or TDM-500 7 24 1-3/16”
BBLU-6D-2TC14 5 AWG 3/8” 0.63 0.56 1.83 0.06 0.94 3.05
BBLU-6D-2TC14E2 1/4” 0.75 0.56 1.83 0.06 0.94 3.05 - Y644HS - 1”
BBLU-6D-2TC38E2 4 AWG 1/4” 0.75 0.41 1.22 0.09 1.13 2.60
BBLU-6D-2TC38E3 3/8” 0.81 0.41 1.36 0.09 1.13 2.74 TDM-250 or TDM-500 7 24 1-3/16”
BBLU-6D-2TC38 3/8” 1.00 0.61 1.58 0.07 0.94 2.74
3/8” 1.75 0.61 1.83 0.06 1.13 3.21 - Y644HS - 1-1/16”
BBLU-6DN 1/2” 0.63 0.61 1.83 0.06 1.13 3.21
BBLU-5D-2TC14 1/4” 0.75 0.70 2.77 0.09 1.00 3.92 TDM-250 or TDM-500 7 24 1-3/16”
BBLU-5D-2TC14E2 1/4” 0.75 0.44 1.22 0.08 1.13 2.60
BBLU-5D-2TC38E2 3/8” 0.81 0.44 1.36 0.08 1.13 2.74 TDM-250 or TDM-500 8 29 1-1/4”
BBLU-5D-2TC38E3 3/8” 1.00 0.61 1.58 0.07 1.13 2.96
BBLU-5D-2TC38 3/8” 0.63 0.61 1.83 0.07 1.13 3.21
BBLU-4D-2TC14 1/4” 0.75 0.61 1.83 0.07 1.13 3.21
BBLU-4D-2TC14E2 1/4” 0.75 0.50 1.22 0.09 1.13 2.60
BBLU-4D-2TC38E2 3/8” 0.81 0.50 1.36 0.09 1.13 2.74
BBLU-4D-2TC38E3 3/8” 1.00 0.61 1.56 0.08 1.13 2.96
BBLU-4D-2TC38 3/8” 1.75 0.61 1.83 0.08 1.13 3.21
1/2” 0.61 1.81 0.08 1.13 3.21
BBLU-4D1 0.92 3.00 0.10 1.13 4.38
