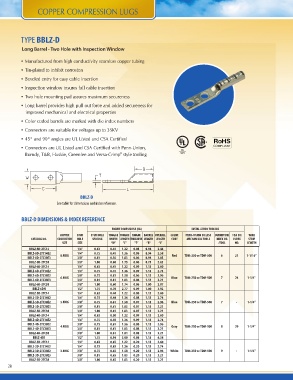

Page 28 - PUC Compression Connectors FLIPBOOK_080415

COPPER COMPRESSION LUGS

TYPE BBLZ-D

Long Barrel - Two Hole with Inspection Window

• Manufactured from high conductivity seamless copper tubing
• Tin-plated to inhibit corrosion
• Beveled entry for easy cable insertion
• Inspection window insures full cable insertion
• Two hole mounting pad assures maximum secureness
• Long barrel provides high pull out force and added secureness for
improved mechanical and electrical properties
• Color coded barrels are marked with die index numbers
• Connectors are suitable for voltages up to 35KV
• 45° and 90° angles are UL Listed and CSA Certified
• Connectors are UL Listed and CSA Certified with Penn-Union,
Burndy, T&B, Huskie, Greenlee and Versa-Crimp® style tooling

BBLZ-D
See table for dimensions and index reference.

BBLZ-D DIMENSIONS & INDEX REFERENCE

FIGURE DIMENSIONS (IN.) INSTALLATION TOOLING

COPPER STUD STUD HOLE TONGUE TONGUE TONGUE BARREL OVERALL COLOR PENN-UNION DIELESS BURNDY DIE T&B DIE WIRE
CATALOG NO. CONDUCTOR HOLE SPACING WIDTH LENGTH THICKNESS LENGTH LENGTH CODE MECHANICAL TOOLS INDEX NO. INDEX STRIP
SIZE /TOOL NO. LENGTH
SIZE “W” “C” “T” “B” “L”

BBLZ-8D-2TC14 1/4” 0.63 0.41 1.22 0.08 0.94 2.44
BBLZ-8D-2TC14E2 1/4”
BBLZ-8D-2TC38E3 8 AWG 3/8” 0.75 0.41 1.36 0.08 0.94 2.58 Red TDM-250 or TDM-500 6 21 1-1/16”
BBLZ-8D-2TC38 6 AWG 3/8” 0.81 0.56 1.83 0.06 0.94 3.05 24 1-1/4”
BBLZ-6D-2TC14 5 AWG 1/4” - 1-1/4”
BBLZ-6D-2TC14E2 4 AWG 1/4” 1.00 0.60 1.75 0.06 0.75 2.63 29 1-1/4”
BBLZ-6D-2TC38E2 3 AWG 3/8” - 1-1/4”
BBLZ-6D-2TC38E3 3/8” 0.63 0.41 1.22 0.09 1.13 2.60
BBLZ-6D-2TC38 3/8”
1/2” 0.75 0.41 1.36 0.09 1.13 2.74
BBLZ-6DN 1/4”
BBLZ-5D-2TC14 1/4” 0.75 0.61 1.58 0.06 1.13 2.96 Blue TDM-250 or TDM-500 7
BBLZ-5D-2TC14E2 3/8” 0.81 0.61 1.83 0.06 1.13 3.21
BBLZ-5D-2TC38E2 3/8”
BBLZ-5D-2TC38E3 3/8” 1.00 0.60 1.74 0.06 1.00 2.87
BBLZ-5D-2TC38 1/4”
BBLZ-4D-2TC14 1/4” 1.75 0.70 2.77 0.09 1.00 3.92
BBLZ-4D-2TC14E2 3/8”
BBLZ-4D-2TC38E2 3/8” 0.63 0.44 1.22 0.08 1.13 2.60
BBLZ-4D-2TC38E3 3/8”
BBLZ-4D-2TC38 1/2” 0.75 0.44 1.36 0.08 1.13 2.74
1/4”
BBLZ-4D1 1/4” 0.75 0.61 1.58 0.07 1.13 2.96 Blue TDM-250 or TDM-500 7
BBLZ-3D-2TC14 3/8”
BBLZ-3D-2TC14E2 3/8” 0.81 0.61 1.83 0.07 1.13 3.21
BBLZ-3D-2TC38E2 3/8”
BBLZ-3D-2TC38E3 1.00 0.61 1.83 0.07 1.13 3.21
BBLZ-3D-2TC38
0.63 0.50 1.22 0.09 1.13 2.60

0.75 0.50 1.36 0.09 1.13 2.74

0.75 0.61 1.56 0.08 1.13 2.96 Gray TDM-250 or TDM-500 8
0.81 0.61 1.83 0.08 1.13 3.21

1.00 0.61 1.81 0.08 1.13 3.21

1.75 0.94 3.00 0.08 1.13 4.38

0.63 0.65 1.22 0.20 1.13 2.60

0.75 0.65 1.36 0.20 1.13 2.74

0.75 0.65 1.58 0.20 1.13 2.96 White TDM-250 or TDM-500 9

0.81 0.65 1.83 0.20 1.13 3.21

1.00 0.65 1.83 0.20 1.13 3.21

28
