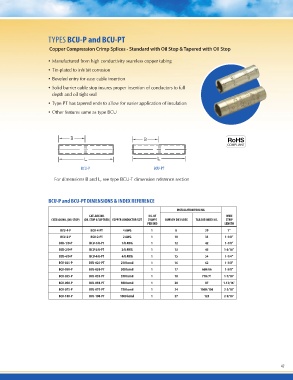

Page 47 - PUC Compression Connectors FLIPBOOK_080415

TYPES BCU-P and BCU-PT

Copper Compression Crimp Splices - Standard with Oil Stop & Tapered with Oil Stop

• Manufactured from high conductivity seamless copper tubing
• Tin-plated to inhibit corrosion
• Beveled entry for easy cable insertion
• Solid barrier cable stop insures proper insertion of conductors to full
depth and oil tight seal
• Type PT has tapered ends to allow for easier application of insulation
• Other features same as type BCU

BCU-P BCU-PT

For dimensions B and L, see type BCU-T dimension reference section

BCU-P and BCU-PT DIMENSIONS & INDEX REFERENCE

INSTALLATION TOOLING

CATLAOG NO. NO. OF BURNDY DIE INDEX T&B DIE INDEX NO. WIRE
CATALOG NO. (OIL-STOP) (OIL STOP & TAPERED) COPPER CONDUCTOR SIZE CRIMPS STRIP
PER END LENGTH
BCU-4-P BCU-4-PT 4 AWG 8 29
BCU-2-P BCU-2-PT 2 AWG 1 10 33 1”
BCU-1/0-P BCU-1/0-PT 1/0 AWG 1 12 42 1-1/8”
BCU-2/0-P BCU-2/0-PT 2/0 AWG 1 13 45 1-1/8”
BCU-4/0-P BCU-4/0-PT 4/0 AWG 1 15 54 1-3/16”
BCU-025-P BCU-025-PT 250 kcmil 1 16 62 1-1/4”
BCU-030-P BCU-030-PT 300 kcmil 1 17 66H/66 1-3/8”
BCU-035-P BCU-035-PT 350 kcmil 1 18 71H/71 1-3/8”
BCU-050-P BCU-050-PT 500 kcmil 1 20 87 1-7/16”
BCU-075-P BCU-075-PT 750 kcmil 1 24 106H/106 1-13/16”
BCU-100-P BCU-100-PT 1000 kcmil 1 27 125 2-3/16”
1 2-9/16”

47
