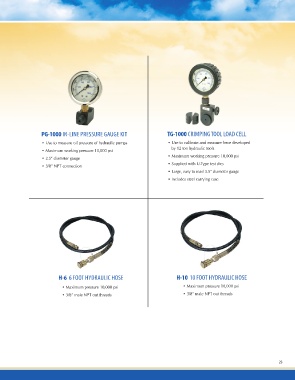

PG-1000 IN-LINE PRESSURE GAUGE KIT TG-1000 CRIMPING TOOL LOAD CELL
• Use to measure oil pressure of hydraulic pumps • Use to calibrate and measure force developed
• Maximum working pressure 10,000 psi by 12 ton hydraulic tools
• 2.5” diameter gauge • Maximum working pressure 10,000 psi
• 3/8” NPT connection • Supplied with U-Type test dies
• Large, easy to read 3.5” diameter gauge
• Includes steel carrying case
H-6 6 FOOT HYDRAULIC HOSE H-10 10 FOOT HYDRAULIC HOSE
• Maximum pressure 10,000 psi • Maximum pressure 10,000 psi
• 3/8” male NPT out threads • 3/8” male NPT out threads
