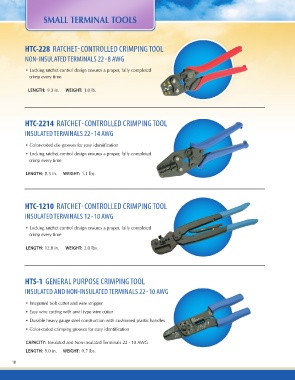

SMALL TERMINAL TOOLS

HTC-228 RATCHET-CONTROLLED CRIMPING TOOL

NON-INSULATED TERMINALS 22 -8 AWG

• Locking ratchet control design ensures a proper, fully completed
crimp every time

LENGTH: 9.3 in. WEIGHT: 1.0 lb.

HTC-2214 RATCHET-CONTROLLED CRIMPING TOOL

INSULATED TERMINALS 22 -14 AWG

• Color-coded die grooves for easy identification
• Locking ratchet control design ensures a proper, fully completed
crimp every time
LENGTH: 8.5 in. WEIGHT: 1.1 lbs.

HTC-1210 RATCHET-CONTROLLED CRIMPING TOOL

INSULATED TERMINALS 12 -10 AWG

• Locking ratchet control design ensures a proper, fully completed
crimp every time
LENGTH: 12.8 in. WEIGHT: 2.0 lbs.

HTS-1 GENERAL PURPOSE CRIMPING TOOL

INSULATED AND NON-INSULATED TERMINALS 22 -10 AWG

• Integrated bolt cutter and wire stripper
• Easy wire cutting with anvil type wire cutter
• Durable heavy gauge steel construction with cushioned plastic handles
• Color-coded crimping grooves for easy identification
CAPACITY: Insulated and Non-insulated Terminals 22 - 10 AWG
LENGTH: 9.0 in. WEIGHT: 0.7 lbs.
18
