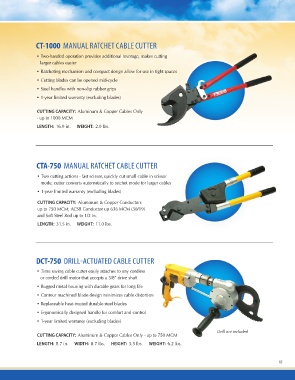

Page 17 - PUC Compression Tools & Dies FLIPBOOK_080415

CT-1000 MANUAL RATCHET CABLE CUTTER Drill not included

• Two-handed operation provides additional leverage, makes cutting
larger cables easier
• Ratcheting mechanism and compact design allow for use in tight spaces
• Cutting blades can be opened mid-cycle
• Steel handles with non-slip rubber grips
• 1-year limited warranty (excluding blades)

CUTTING CAPACITY: Aluminum & Copper Cables Only
- up to 1000 MCM
LENGTH: 16.9 in. WEIGHT: 2.0 lbs.

CTA-750 MANUAL RATCHET CABLE CUTTER

• Two cutting actions - fast scissor, quickly cut small cable in scissor
mode, cutter converts automatically to ratchet mode for larger cables
• 1-year limited warranty (excluding blades)
CUTTING CAPACITY: Aluminum & Copper Conductors
up to 750 MCM; ACSR Conductor up 636 MCM (30/19)
and Soft Steel Rod up to 1/2 in.
LENGTH: 31.5 in. WEIGHT: 11.0 lbs.

DCT-750 DRILL-ACTUATED CABLE CUTTER

• Time saving cable cutter easily attaches to any cordless
or corded drill motor that accepts a 3/8” drive shaft
• Rugged metal housing with durable gears for long life
• Contour machined blade design minimizes cable distortion
• Replaceable heat-treated durable steel blades
• Ergonomically designed handle for comfort and control
• 1-year limited warranty (excluding blades)

CUTTING CAPACITY: Aluminum & Copper Cables Only - up to 750 MCM
LENGTH: 8.7 in. WIDTH: 8.7 lbs. HEIGHT: 3.5 lbs. WEIGHT: 6.2 lbs.

17
