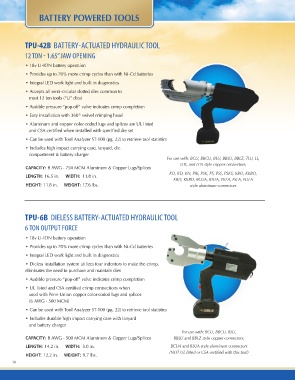

Page 14 - PUC Compression Tools & Dies FLIPBOOK_080415

BATTERY POWERED TOOLS

TPU-42B BATTERY-ACTUATED HYDRAULIC TOOL

12 TON - 1.65”JAW OPENING

• 18v LI-ION battery operation

• Provides up to 70% more crimp cycles than with Ni-Cd batteries

• Integral LED work light and built in diagnostics

• Accepts all semi-circular slotted dies common to
most 12 ton tools (“U” dies)

• Audible pressure “pop-off” valve indicates crimp completion

• Easy installation with 360° swivel crimping head

• Aluminum and copper color-coded lugs and splices are UL listed
and CSA certified when installed with specified die set

• Can be used with Tool Analyzer ST-100 (pg. 22) to retrieve tool statistics

• Includes high impact carrying case, lanyard, die For use with: BCU, BBCU, BLU, BBLU, BBLZ, TLU, LL,
compartment & battery charger LLR, and LLN style copper connectors;

CAPACITY: 8 AWG - 750 MCM Aluminum & Copper Lugs/Splices KO, KD, KN, PIK, PSK, PS, PSS, PSKS, KBO, KKBO,
LENGTH: 16.5 in. WIDTH: 11.8 in. KBD, KKBD, BCUA, BLUA, FKLA, FSLA, FULA
HEIGHT: 11.8 in. WEIGHT: 17.6 lbs. style aluminum connectors

TPU-6B DIELESS BATTERY-ACTUATED HYDRAULIC TOOL

6 TON OUTPUT FORCE

• 18v LI-ION battery operation

• Provides up to 70% more crimp cycles than with Ni-Cd batteries

• Integral LED work light and built in diagnostics

• Dieless installation system utilizes four indentors to make the crimp,
eliminates the need to purchase and maintain dies

• Audible pressure “pop-off” valve indicates crimp completion

• UL listed and CSA certified crimp connections when
used with Penn-Union copper color-coded lugs and splices
(6 AWG - 500 MCM)

• Can be used with Tool Analyzer ST-100 (pg. 22) to retrieve tool statistics

• Includes durable high impact carrying case with lanyard For use with: BCU, BBCU, BLU,
and battery charger BBLU and BBLZ style copper connectors;

CAPACITY: 8 AWG - 500 MCM Aluminum & Copper Lugs/Splices BCUA and BLUA style aluminum connectors
LENGTH: 14.2 in. WIDTH: 3.0 in. (NOT UL listed or CSA certified with this tool)
HEIGHT: 12.2 in. WEIGHT: 9.7 lbs.
14
