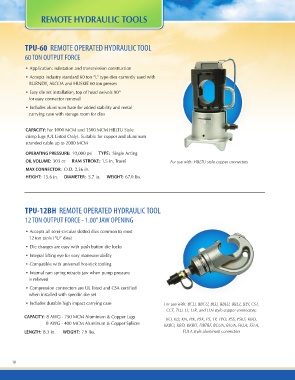

REMOTE HYDRAULIC TOOLS

TPU-60 REMOTE OPERATED HYDRAULIC TOOL

60 TON OUTPUT FORCE

• Application: substation and transmission construction

• Accepts industry standard 60 ton “L” type dies currently used with
BURNDY, ALCOA and HUSKIE 60 ton presses

• Easy die set installation, top of head swivels 90°
for easy connector removal­

• Includes aluminum base for added stability and metal
carrying case with storage room for dies

CAPACITY: For 1000 MCM and 1500 MCM HBLTU Style For use with: HBLTU style copper connectors
crimp lugs (UL Listed Only). Suitable for copper and aluminum
stranded cable up to 2000 MCM

OPERATING PRESSURE: 10,000 psi TYPE: Single Acting
OIL VOLUME: 303 cc RAM STROKE: 1.5 in. Travel

MAX CONNECTOR: O.D. 2.36 in.
HEIGHT: 15.6 in. DIAMETER: 5.7 in. WEIGHT: 67.0 lbs.

TPU-12BH REMOTE OPERATED HYDRAULIC TOOL

12 TON OUTPUT FORCE - 1.00”JAW OPENING

• Accepts all semi-circular slotted dies common to most For use with: BCU, BBCU, BLU, BBLU, BBLZ, BLY, CST,
12 ton tools (“U” dies) CCT, TLU, LL, LLR, and LLN style copper connectors;
• Die changes are easy with push button die locks
• Integral lifting eye for easy maneuverability KO, KD, KN, PIK, PSK, PS, TP, TPO, PSS, PSKS, KBO,
• Compatible with universal hot-stick tooling KKBO, KBD, KKBD, DBTBF, BCUA, BLUA, FKLA, FSLA,
• Internal ram spring retracts jaw when pump pressure
is relieved FULA style aluminum connectors
• Compression connectors are UL listed and CSA certified
when installed with specific die set
• Includes durable high impact carrying case

CAPACITY: 8 AWG - 750 MCM Aluminum & Copper Lugs
8 AWG - 400 MCM Aluminum & Copper Splices

LENGTH: 8.3 in. WEIGHT: 7.9 lbs.
