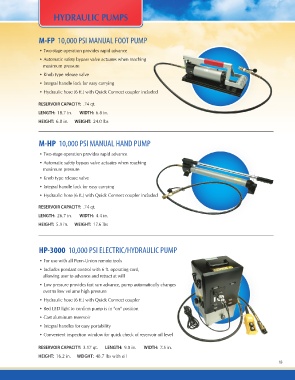

Page 13 - PUC Compression Tools & Dies FLIPBOOK_080415

HYDRAULIC PUMPS

M-FP 10,000 PSI MANUAL FOOT PUMP

• Two-stage operation provides rapid advance
• Automatic safety bypass valve actuates when reaching
maximum pressure
• Knob type release valve
• Integral handle lock for easy carrying
• Hydraulic hose (6 ft.) with Quick Connect coupler included

RESERVOIR CAPACITY: .74 qt.
LENGTH: 18.7 in. WIDTH: 6.8 in.
HEIGHT: 6.8 in. WEIGHT: 24.0 lbs

M-HP 10,000 PSI MANUAL HAND PUMP

• Two-stage operation provides rapid advance
• Automatic safety bypass valve actuates when reaching
maximum pressure
• Knob type release valve
• Integral handle lock for easy carrying
• Hydraulic hose (6 ft.) with Quick Connect coupler included

RESERVOIR CAPACITY: .74 qt.
LENGTH: 26.7 in. WIDTH: 4.4 in.
HEIGHT: 5.9 in. WEIGHT: 17.6 lbs

HP-3000 10,000 PSI ELECTRIC/HYDRAULIC PUMP

• For use with all Penn-Union remote tools
• Includes pendant control with 6 ft. operating cord,
allowing user to advance and retract at will
• Low pressure provides fast ram advance, pump automatically changes
over to low volume high pressure
• Hydraulic hose (6 ft.) with Quick Connect coupler
• Red LED light to confirm pump is in “on” position
• Cast aluminum reservoir
• Integral handles for easy portability
• Convenient inspection window for quick check of reservoir oil level

RESERVOIR CAPACITY: 3.17 qt. LENGTH: 9.0 in. WIDTH: 7.5 in.
HEIGHT: 16.2 in. WEIGHT: 48.7 lbs with oil

13
