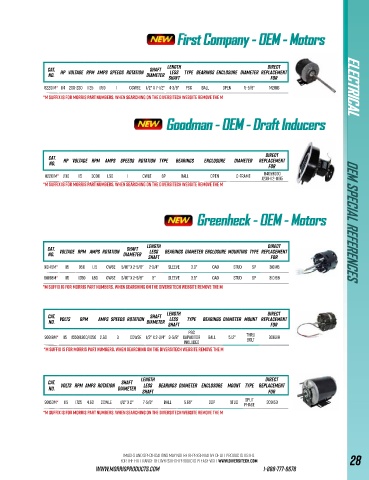

Page 31 - 2025 MORRIS Diversitech HVAC Catalog

First Company - OEM - MotorsFirst Company - OEM - Motors

CAT. HP Voltage RPM Amps Speeds Rotation SHaft Length Direct
Less Type Bearings Enclosure Diameter Replacement
NO. Diameter Shaft For
82201M* 1/4 208-230 1125 1.50 1 CCWSE 1/2" x 7-1/2" 4-3/8" PSC Ball Open 5-5/8" M201B ELECTRICAL
*M suffix is for MOrris part numbers. When searching on the Diversitech website remove the M

Goodman - OEM - Draft InducersGoodman - OEM - Draft Inducers
ELECTRICAL

Direct
CAT. HP Voltage RPM Amps Speeds Rotation Type Bearings Enclosure Diameter Replacement
NO. For
B4059000
82201M* 1/30 115 3000 1.50 1 CWLE SP Ball Open C-Frame J238-112-11195
*M suffix is for MOrris part numbers. When searching on the Diversitech website remove the M

Greenheck - OEM - MotorsGreenheck - OEM - Motors OEM SPECIAL REFERENCES

CAT. SHaft Length Direct
Less
NO. Voltage RPM Amps Rotation Diameter Shaft Bearings Diameter Enclosure Mounting Type Replacement
For
90145M* 115 950 1.15 CWSE 5/16" x 2-5/8" 2-3/4" Sleeve 3.3" OAO Stud SP 310145
90198M* 115 1050 1.80 CWSE 5/16" x 2-5/8" 3" Sleeve 3.3" OAO Stud SP 310198
*M suffix is for MOrris part numbers. When searching on the Diversitech website remove the M

CAT. SHaft Length Direct
Less
NO. Volts RPM Amps Speeds Rotation Diameter Shaft Type Bearings Diameter Mount Replacement
For
PSC
90318M* 115 1550/1300/1050 2.60 3 CCWSE 1/2" x 2-3/4" 3-5/8" Capacitor Ball 5.12" Thru 308318
Bolt
Included
*M suffix is for MOrris part numbers. When searching on the Diversitech website remove the M

CAT. Volts RPM Amps Rotation SHaft Length Direct
Less Bearings Diameter Enclosure Mount Type Replacement
NO. Diameter Shaft For
Split
90153M* 115 1725 4.60 CCWLE 1/2" x 2" 7-5/8" Ball 5.69" ODP Stud Phase 309153
*M suffix is for MOrris part numbers. When searching on the Diversitech website remove the M

Images and Specifications may not be representative of all products listed.
FOR THE FULL RANGE OF DIVERSITECH PRODUCTS PLEASE VISIT www.DIVERSITECH.COM 28
www.morrisproducts.com 1-888-777-6678
