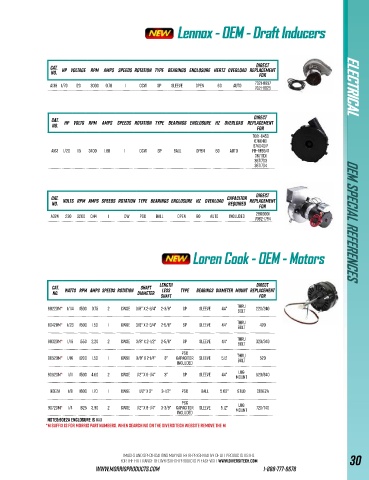

Page 33 - 2025 MORRIS Diversitech HVAC Catalog

Lennox - OEM - Draft InducersLennox - OEM - Draft Inducers

Direct
CAT. HP VOLTAGE RPM Amps Speeds Rotation Type Bearings Enclosure HERTZ OVERLOAD Replacement
NO. For
7021-8657
A138 1/70 120 3000 0.70 1 CCW SP Sleeve Open 60 Auto 7021-8825 ELECTRICAL

CAT. Direct
ELECTRICAL
NO. HP VOLts RPM Amps Speeds Rotation Type Bearings Enclosure HZ OVERLOAD Replacement
For
7021-9450
67K0401
67K0401P
A163 1/20 115 3400 1.80 1 CCW SP Ball Open 60 Auto FB-RFB547
36717D1
36717D3
36717D4

CAT. Capacitor Direct
NO. VOLTs RPM Amps Speeds Rotation Type Bearings Enclosure HZ OVERLOAD Required Replacement
For
28G6601
A324 230 3200 0.44 1 CW PSC Ball Open 60 Auto Included 7062-1794 OEM SPECIAL REFERENCES

Loren Cook - OEM - Motors
Loren Cook - OEM - Motors

CAT. SHaft Length Direct
NO. Watts RPM Amps Speeds Rotation Diameter Less Type Bearings Diameter Mount Replacement
Shaft For
90220M* 1/114 1500 0.75 2 CWSE 3/8" X 2-3/4" 2-3/8" SP Sleeve 4.4" Thru 220/240
Bolt

90420M* 1/23 1500 1.50 1 CWSE 3/8" X 2-3/4" 2-5/8" SP Sleeve 4.4" Thru 420
Bolt
90320M* 1/16 1550 2.20 2 CWSE 3/8" X 2-1/2" 2-5/8" SP Sleeve 4.4" Thru 320/340
Bolt
PSC
90520M* 1/16 1200 1.50 1 CWSE 3/8" X 2-1/4" 3" Capacitor Sleeve 5.12 Thru 520
Bolt
Included
Lug
90620M* 1/11 1500 4.60 2 CWSE 1/2" X 6-1/4" 3" SP Sleeve 4.4" Mount 620/640

90E2A 1/8 1600 1.70 1 CWSE 1/2" X 3" 3-1/2" PSC Ball 5.63" Stud C06E2A
PSC
Lug
90720M* 1/4 1625 3.90 2 CWSE 1/2" X 6-1/4" 3-3/8" Capacitor Sleeve 5.12" Mount 720/740
Included
Notes:90E2A Enclosure is OAO
*M suffix is for MOrris part numbers. When searching on the Diversitech website remove the M

Images and Specifications may not be representative of all products listed.
