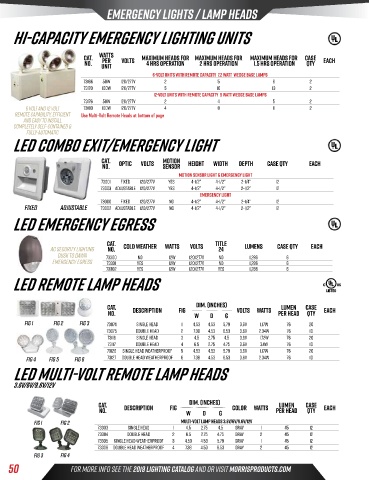

Page 52 - 2020 October Lighting Catalog

Emergency Lights / Lamp Heads

Hi-Capacity Emergency Lighting Units

Cat. Watts volts Maximum Heads for Maximum Heads for Maximum Heads for Case EaCH
Per
No. Unit 4 hrs Operation 2 hrs Operation 1.5 hrs Operation Qty
6-Volt Units with Remote Capacity 7.2 Watt Wedge Base Lamps
73166 50w 120/277V 2 5 6 2
73170 100w 120/277V 5 10 13 2
12-Volt Units with Remote Capacity 9 Watt Wedge Base Lamps
73176 50w 120/277V 2 4 5 2
6 Volt and 12 Volt 73180 100w 120/277V 4 8 11 2
Remote capability, efficient Use Multi-Volt Remote Heads at bottom of page
and easy to install
Completely self-contained &
fully-automatic
LED Combo Exit/Emergency Light

Cat. optic volts Motion Height Width Depth Case Qty Each
No. Sensor
Motion Sensor Light & Emergency Light
73001 Fixed 120/277V Yes 4-1/2” 4-1/2” 2-1/4” 12
73003 Adjustable 120/277V Yes 4-1/2” 4-1/2” 2-1/2” 12
Emergency Light
73000 Fixed 120/277V No 4-1/2” 4-1/2” 2-1/4” 12
Fixed Adjustable 73002 Adjustable 120/277V No 4-1/2” 4-1/2” 2-1/2” 12
LED Emergency Egress

Cat. Cold Weather watts volts Title Lumens Case Qty Each
AC Security Lighting No. 24
Dusk To Dawn 73300 No 12W 120/277V no 1,286 6
Emergency Egress 73301 Yes 12W 120/277V no 1,286 6
73302 Yes 12W 120/277V yes 1,286 6
LED Remote Lamp Heads

Cat. Description Fig Dim. (Inches) Volts Watts Lumen Case Each
No. W D G Per Head Qty
Fig 1 Fig 2 Fig 3 73074 Single Head 1 4.53 4.53 5.79 3.6v 1.17w 76 20
73075 Double Head 2 7.38 4.53 6.53 3.6v 2.34w 76 10
73116 Single head 3 4.5 2.75 4.5 3.6v 1.72w 76 20
73117 Double Head 4 6.5 2.75 4.75 3.6v 3.4w 76 10
73126 Single Head Weatherproof 5 4.53 4.53 5.79 3.6v 1.17w 76 20
Fig 4 Fig 5 Fig 6 73127 Double Head Weatherproof 6 7.38 4.53 6.53 3.6v 2.34w 76 10
LED Multi-Volt Remote Lamp Heads

3.6V/6V/9.6V/12V

Cat. Description Fig Dim. (Inches) color Watts Lumen Case Each
No. W D G Per Head Qty
Fig 1 Fig 2 Multi-volt lamp heads 3.6V/6V/9.6V/12V
73303 Single head 1 4.5 2.75 4.5 Gray 1 45 12
73304 Double Head 2 6.5 2.75 4.75 Gray 2 45 12
73305 Single Head Weatherproof 3 4.53 4.53 5.79 Gray 1 45 12
73306 Double Head Weatherproof 4 7.38 4.53 6.53 Gray 2 45 12
Fig 3 Fig 4
50 FOR MORE INFO SEE THE 2019 LIGHTING Catalog and or visit morrisproducts.com
