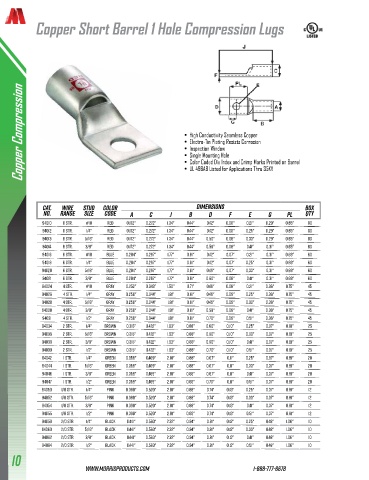

Page 12 - MORRIS 2026 Connectors & Grounding

Copper Short Barrel 1 Hole Compression Lugs

Copper Compression • High Conductivity Seamless Copper

• Electro-Tin Plating Resists Corrosion
• Inspection Window
• Single Mounting Hole
• Color Coded Die Index and Crimp Marks Printed on Barrel
• UL 486AB Listed for Applications Thru 35KV

Cat. Wire Stud Color Dimensions Box
No. Range Size Code a c j b d f e g pl Qty

94010 8 Str. #10 Red 0.172" 0.272" 1.34" 0.44" 0.42" 0.08" 0.21" 0.29" 0.65" 80
94012 8 Str. 1/4" Red 0.172" 0.272" 1.34" 0.44" 0.42" 0.08" 0.25" 0.29" 0.65" 80
94013 8 Str. 5/16" Red 0.172" 0.272" 1.34" 0.44" 0.50" 0.08" 0.33" 0.29" 0.65" 80
94014 8 Str. 3/8" Red 0.172" 0.272" 1.34" 0.44" 0.56" 0.08" 0.41" 0.31" 0.65" 80
94016 6 Str. #10 Blue 0.204" 0.297" 1.77" 0.81" 0.42" 0.07" 0.21" 0.31" 0.69" 60
94018 6 Str. 1/4" Blue 0.204" 0.297" 1.77" 0.81" 0.42" 0.07" 0.25" 0.31" 0.69" 60
94020 6 Str. 5/16" Blue 0.204" 0.297" 1.77" 0.81" 0.49" 0.07" 0.33" 0.31" 0.69" 60
94021 6 Str. 3/8" Blue 0.204" 0.297" 1.77" 0.81" 0.60" 0.08" 0.41" 0.31" 0.69" 60
94024 4 Str. #10 Gray 0.252" 0.343" 1.50" 0.71" 0.49" 0.08" 0.21" 0.36" 0.75" 45
94026 4 Str. 1/4" Gray 0.250" 0.344" 1.81" 0.81" 0.49" 0.09" 0.25" 0.36" 0.75" 45
94028 4 Str. 5/16" Gray 0.250" 0.344" 1.81" 0.81" 0.49" 0.09" 0.33" 0.36" 0.75" 45
94030 4 Str. 3/8" Gray 0.250" 0.344" 1.81" 0.81" 0.56" 0.09" 0.41" 0.36" 0.75" 45
94031 4 Str. 1/2" Gray 0.250" 0.344" 1.81" 0.81" 0.70" 0.09" 0.51" 0.36" 0.75" 45
94034 2 Str. 1/4" Brown 0.315" 0.422" 1.93" 0.88" 0.60" 0.10" 0.25" 0.37" 0.81" 25
94036 2 Str. 5/16" Brown 0.315" 0.422" 1.93" 0.88" 0.60" 0.10" 0.33" 0.37" 0.81" 25
94038 2 Str. 3/8" Brown 0.315" 0.422" 1.93" 0.88" 0.60" 0.10" 0.41" 0.37" 0.81" 25
94039 2 Str. 1/2" Brown 0.315" 0.422" 1.93" 0.88" 0.70" 0.10" 0.51" 0.37" 0.81" 25
94042 1 Str. 1/4" Green 0.359" 0.469" 2.01" 0.88" 0.67" 0.11" 0.25" 0.37" 0.81" 20
94044 1 Str. 5/16" Green 0.359" 0.469" 2.01" 0.88" 0.67" 0.11" 0.33" 0.37" 0.81" 20
94046 1 Str. 3/8" Green 0.359" 0.469" 2.01" 0.88" 0.67" 0.11" 0.41" 0.37" 0.81" 20
94047 1 Str. 1/2" Green 0.359" 0.469" 2.01" 0.88" 0.70" 0.11" 0.51" 0.37" 0.81" 20
94050 1/0 Str. 1/4" Pink 0.390" 0.520" 2.01" 0.88" 0.74" 0.13" 0.25" 0.37" 0.81" 12
94052 1/0 Str. 5/16" Pink 0.390" 0.520" 2.01" 0.88" 0.74" 0.13" 0.33" 0.37" 0.81" 12
94054 1/0 Str. 3/8" Pink 0.390" 0.520" 2.01" 0.88" 0.74" 0.13" 0.41" 0.37" 0.81" 12
94055 1/0 Str. 1/2" Pink 0.390" 0.520" 2.01" 0.88" 0.74" 0.13" 0.51" 0.37" 0.81" 12
94058 2/0 Str. 1/4" Black 0.441" 0.563" 2.32" 0.94" 0.81" 0.12" 0.25" 0.48" 1.06" 10
94060 2/0 Str. 5/16" Black 0.441" 0.563" 2.32" 0.94" 0.81" 0.12" 0.33" 0.48" 1.06" 10
94062 2/0 Str. 3/8" Black 0.441" 0.563" 2.32" 0.94" 0.81" 0.12" 0.41" 0.48" 1.06" 10
94064 2/0 Str. 1/2" Black 0.441" 0.563" 2.32" 0.94" 0.81" 0.12" 0.51" 0.48" 1.06" 10
10
